51134
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$342.00 USD
Regular price
Sale price
$342.00 USD
Unit price
per
Couldn't load pickup availability
Bore170 mm
6.6929 in
Outside dia.215 mm
8.4646 in
Height34 mm
1.3386 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

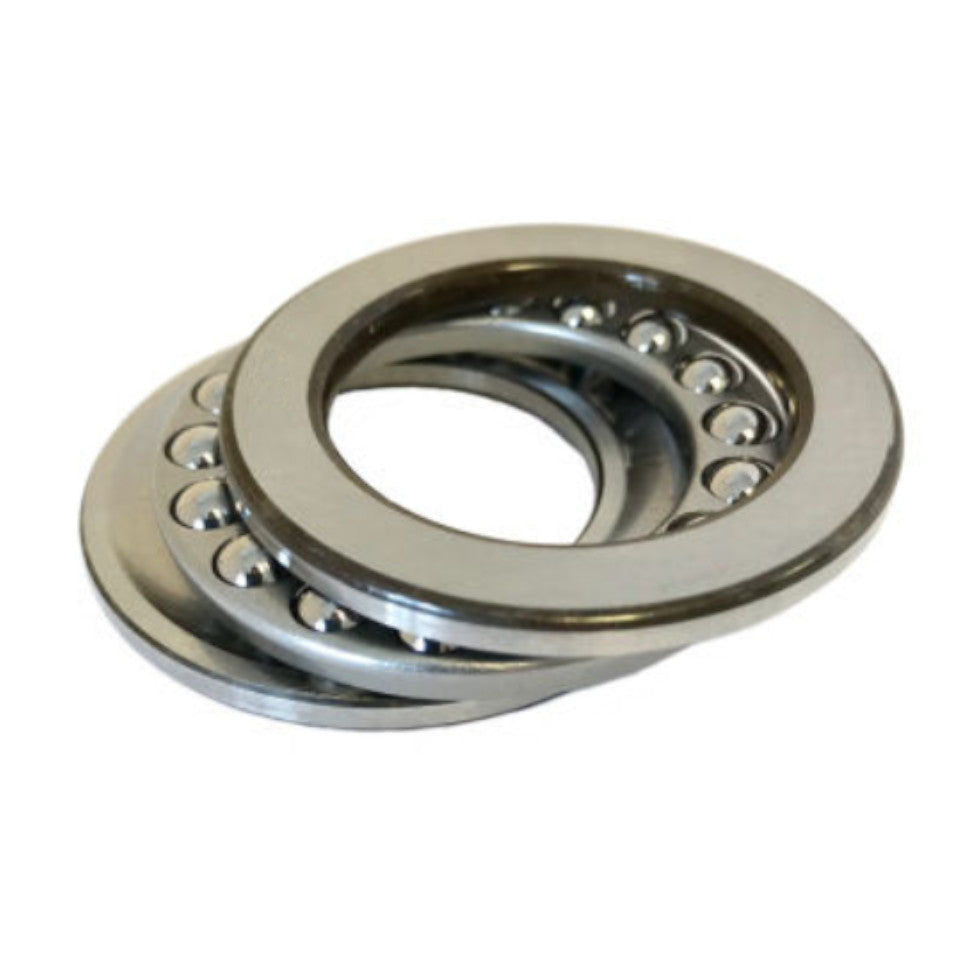

Image is for illustration purposes only.
What 51134 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
1 |
Diameter series | Diameter series 1 (extra light) |
34 |
Bore | Bore code 34 × 5 = 170 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51134 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 170 mm | 6.6929 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 215 mm | 8.4646 in | Supplier catalogue listing |
| Height (H) | 34 mm | 1.3386 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51134 is a thrust ball bearing, 170 mm bore × 215 mm OD × 34 mm wide (6.6929 × 8.4646 × 1.3386 in).
The 51134 is a thrust ball bearing designed to support axial loads in one direction. With a bore diameter of 170mm, outside diameter of 215mm, and width of 34mm, this bearing is part of the 511 series thrust ball bearing family.
Inner Diameter (ID)
170 mm
Outside Diameter (OD)
215 mm
Width
34 mm
Series
511
Bearing Type
Thrust ball bearing
