51100

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$12.08 USD
$12.08 USD
Sale Sold out
Bore10 mm 0.3937 in
Outside dia.24 mm 0.9449 in
Height9 mm 0.3543 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
  • 51100 Thrust Ball Bearings
1 1

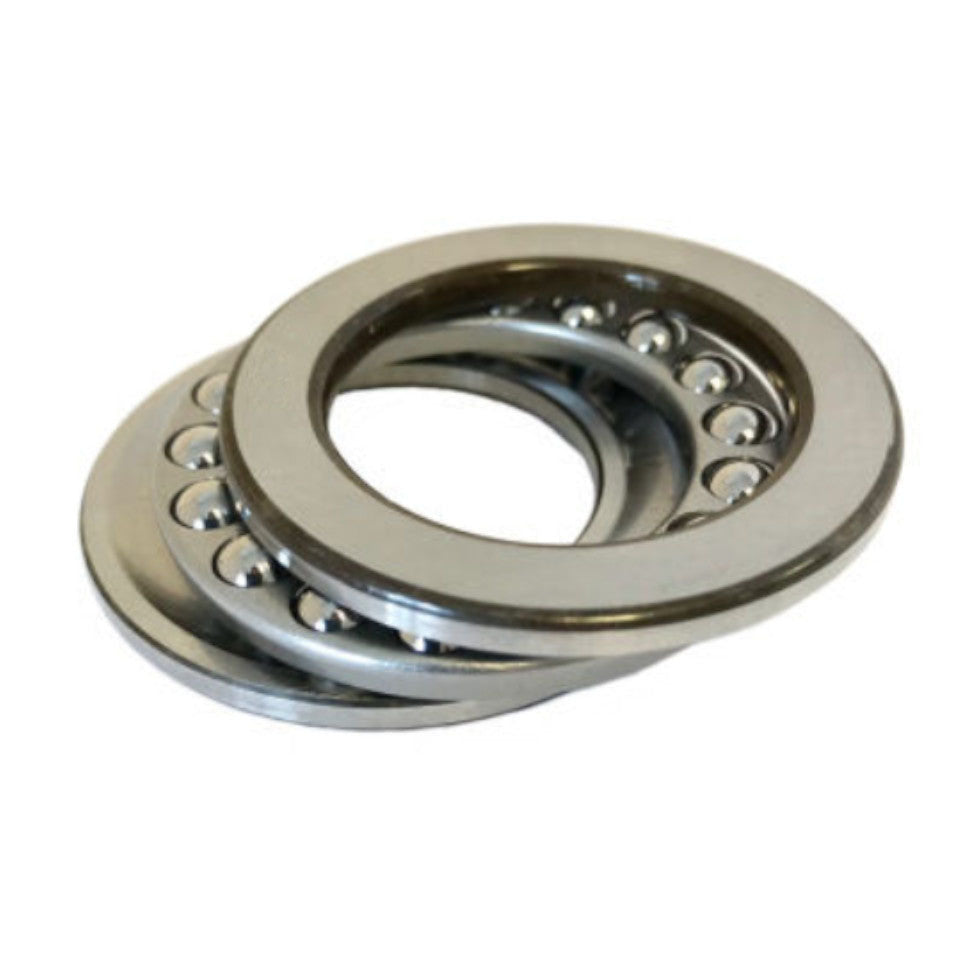

Image is for illustration purposes only.

What 51100 means

CodePositionMeaning
5 Type Thrust ball bearing
1 Height series Height series 1
1 Diameter series Diameter series 1 (extra light)
00 Bore Bore code 00 = 10 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm)

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

51100 specifications

Specification Metric Inch Basis
Bore (d) 10 mm 0.3937 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 24 mm 0.9449 in Supplier catalogue listing
Height (H) 9 mm 0.3543 in Supplier catalogue listing
Bearing type Thrust ball bearing Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

51100 is a thrust ball bearing, 10 mm bore × 24 mm OD × 9 mm wide (0.3937 × 0.9449 × 0.3543 in).

The 51100 is a thrust ball bearing with a 10 mm bore diameter from the 511 series. Thrust ball bearings are designed to support axial loads in one direction and provide precise positioning for rotating assemblies with minimal friction.

Related sizes & variants

  • 51102 · 15×28×9 mm · Open
  • 51103 · 17×30×9 mm · Open
  • 51104 · 20×35×10 mm · Open
  • 2914 · 70×95×20 mm · Open
  • 3909 · 45×85×28 mm · Open
  • 3910 · 50×92×31 mm · Open

Browse all Ball Bearings →
