51104
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesRegular price
$16.83 USD
Regular price
Sale price
$16.83 USD
Unit price
per
Couldn't load pickup availability
Bore20 mm
0.7874 in
Outside dia.35 mm
1.378 in
Height10 mm
0.3937 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

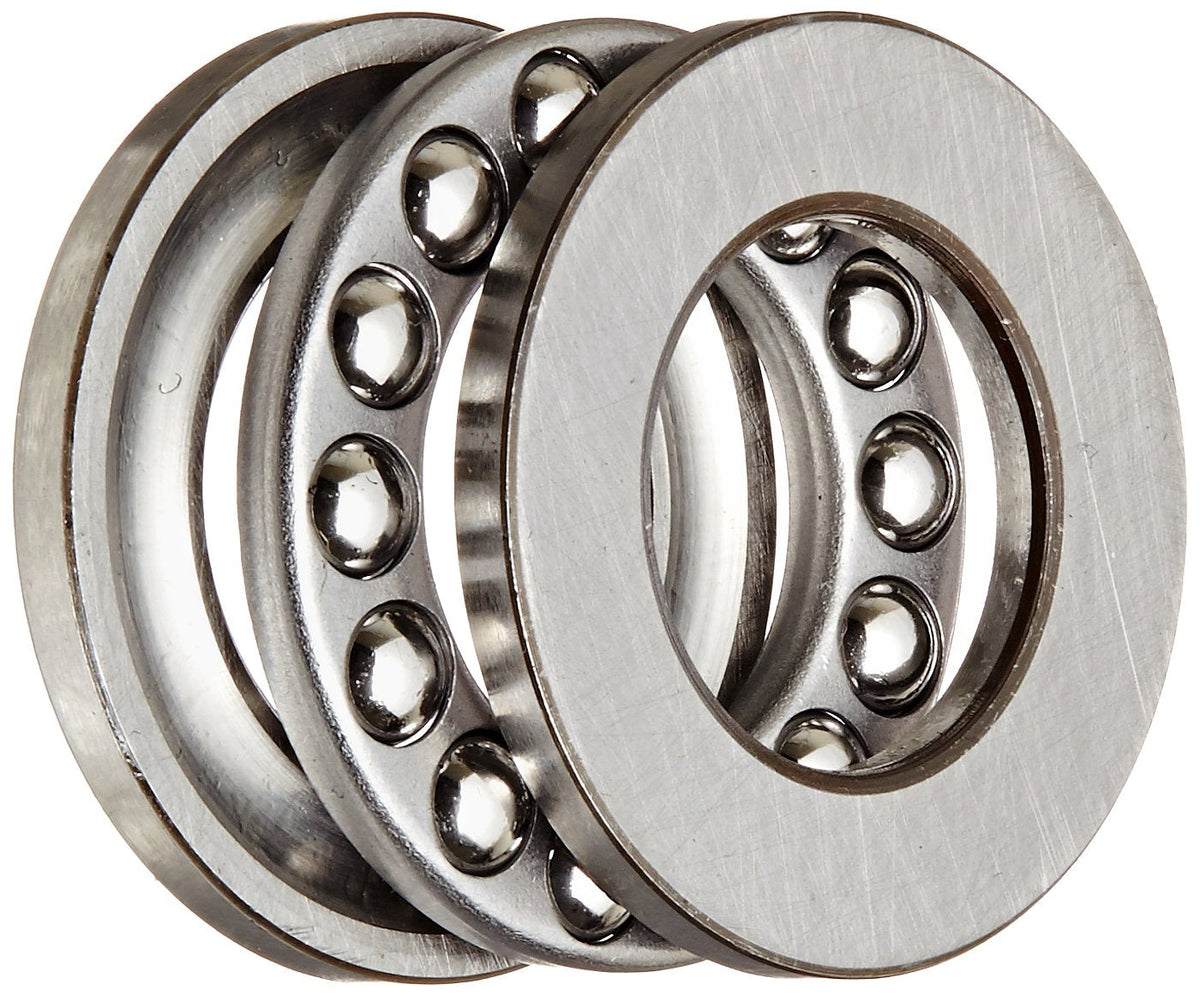

Image is for illustration purposes only.
What 51104 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
1 |
Diameter series | Diameter series 1 (extra light) |
04 |
Bore | Bore code 04 × 5 = 20 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51104 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 35 mm | 1.378 in | Supplier catalogue listing |
| Height (H) | 10 mm | 0.3937 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51104 is a thrust ball bearing, 20 mm bore × 35 mm OD × 10 mm wide (0.7874 × 1.378 × 0.3937 in).
The 51104 is a thrust ball bearing from the 511 series, designed with a 20 mm bore diameter to support axial loads in a single direction. Thrust ball bearings use ball elements between two grooved washers (shaft and housing washers) to handle forces parallel to the shaft axis.
Bore/Inner Diameter Inch: 0.787
Bore/Inner Diameter mm: 20.0
Outside Diameter Inch: 1.378
Outside Diameter mm: 35.0
Measurement Type
Metric
Inner Diameter (ID)
20 mm
Outside Diameter (OD)
35 mm
Width
10 mm
Sealing
Open
Precision Class
ISO P0
Series
511
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
0.04
Basic Number
51104
UNSPSC
31171552
