51107
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesRegular price
$20.19 USD
Regular price
Sale price
$20.19 USD
Unit price
per
Couldn't load pickup availability
Bore35 mm
1.378 in
Outside dia.52 mm
2.0472 in
Height12 mm
0.4724 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

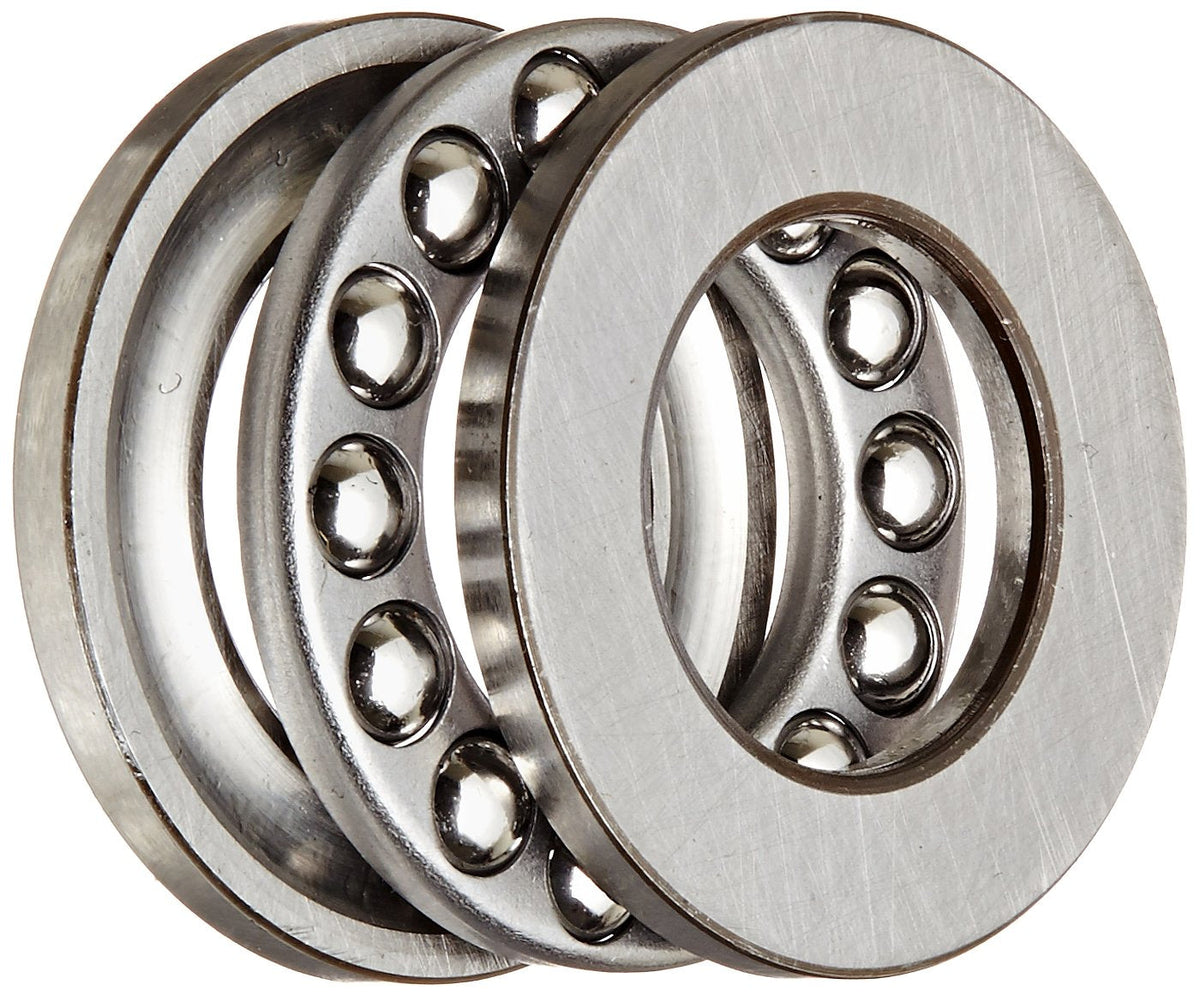

Image is for illustration purposes only.
What 51107 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
1 |
Diameter series | Diameter series 1 (extra light) |
07 |
Bore | Bore code 07 × 5 = 35 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51107 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 52 mm | 2.0472 in | Supplier catalogue listing |
| Height (H) | 12 mm | 0.4724 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51107 is a thrust ball bearing, 35 mm bore × 52 mm OD × 12 mm wide (1.378 × 2.0472 × 0.4724 in).
The 51107 is a thrust ball bearing designed to support axial loads in a single direction. With a bore diameter of 35 mm and belonging to the 511 series, this bearing uses ball elements arranged in a raceway to accommodate thrust forces along the shaft axis.
Bore/Inner Diameter Inch: 1.378
Bore/Inner Diameter mm: 35.0
Outside Diameter Inch: 2.047
Outside Diameter mm: 52.0
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
52 mm
Width
12 mm
Sealing
Open
Precision Class
ISO P0
Series
511
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
0.085
Basic Number
51107
UNSPSC
31171552
