32207J
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

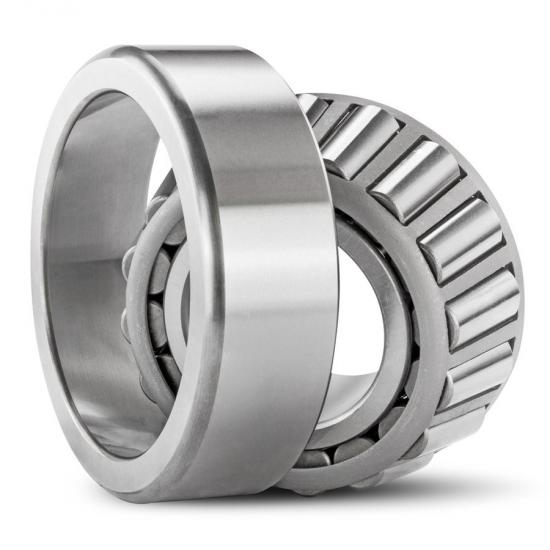

Image is for illustration purposes only.
What 32207J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
2 |
Diameter series | Diameter series 2 (light) |
07 |
Bore | Bore code 07 × 5 = 35 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
32207J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 72 mm | 2.8346 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 24.25 mm | 0.9547 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 32207 | Timken Interchange Guide |
| TIMKEN | 32207M | Timken Interchange Guide |
Also listed in manufacturer interchange tables (4): confirm suffix codes before ordering
- SKF 32207/Q (Timken agricultural interchange)
- TIMKEN 32207M-90KM1 (Timken agricultural interchange)
- FAG 32207A (Timken Interchange Guide)
- NTN 4T-32207 (Timken agricultural interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32207J is a tapered roller bearing (metric, ISO 355), 35 mm bore × 72 mm OD × 24.25 mm wide (1.378 × 2.8346 × 0.9547 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 32207, TIMKEN 32207M.
The 32207J is a metric tapered roller bearing from the 322 series, featuring a 35mm bore diameter, 72mm outside diameter, and 24.25mm width. Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and axial loads efficiently.
32207J Tapered Roller Metric Type
