32206J
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

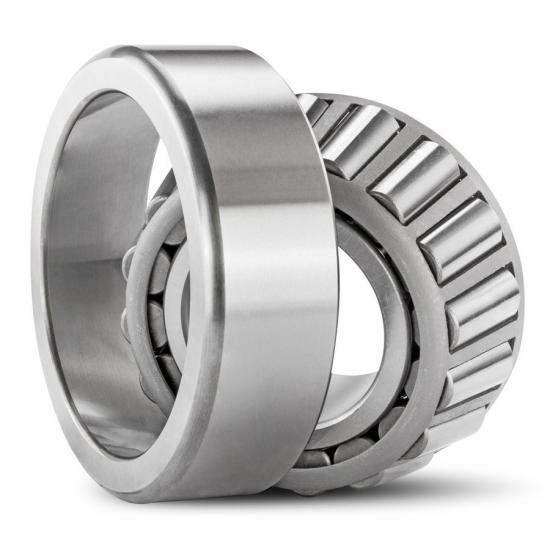

Image is for illustration purposes only.
What 32206J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
2 |
Diameter series | Diameter series 2 (light) |
06 |
Bore | Bore code 06 × 5 = 30 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
32206J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 62 mm | 2.4409 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 21.25 mm | 0.8366 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 32206 | Timken Interchange Guide |
| TIMKEN | 32206M | Timken Interchange Guide |
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- FAG 32206A (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32206J is a tapered roller bearing (metric, ISO 355), 30 mm bore × 62 mm OD × 21.25 mm wide (1.1811 × 2.4409 × 0.8366 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 32206, TIMKEN 32206M.
The 32206J is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 30 mm bore diameter and belonging to the 322 series. Tapered roller bearings use conical rolling elements between inner and outer ring raceways to handle combined radial and axial loads.
32206J Tapered Roller Metric Type
