32203

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$13.01 USD
$13.01 USD
Sale Sold out
Bore17 mm 0.6693 in
Outside dia.40 mm 1.5748 in
Width, assembled17.25 mm 0.6791 in
TypeTapered roller bearing (metric, ISO 355)
SealingOpen
Flat-rate shipping — calculated by weight at checkout
  • 32203 Taper Bearings
1 1

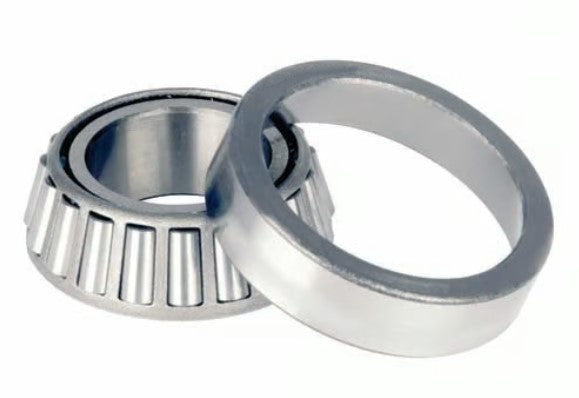

Image is for illustration purposes only.

What 32203 means

CodePositionMeaning
3 Type Tapered roller bearing (metric)
2 Width series Width series 2
2 Diameter series Diameter series 2 (light)
03 Bore Bore code 03 = 17 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm)

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

32203 specifications

Specification Metric Inch Basis
Bore (d) 17 mm 0.6693 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 40 mm 1.5748 in Supplier catalogue listing
Width, assembled (T) 17.25 mm 0.6791 in Supplier catalogue listing
Bearing type Tapered roller bearing (metric, ISO 355) Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

32203 is a tapered roller bearing (metric, ISO 355), 17 mm bore × 40 mm OD × 17.25 mm wide (0.6693 × 1.5748 × 0.6791 in).

The 32203 is a metric tapered roller bearing with a 17 mm bore diameter from the ISO 355 standard 322 series. Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and axial loads efficiently.
