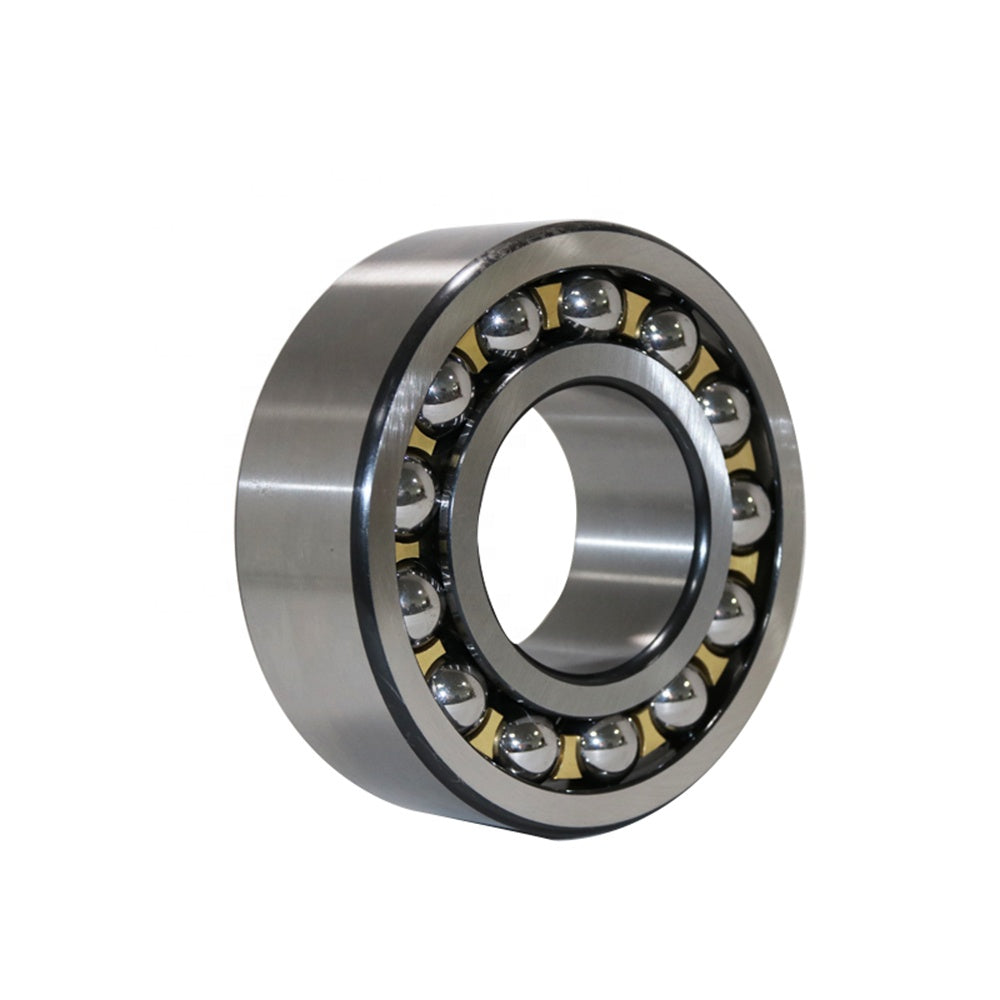

Image is for illustration purposes only.
2210
Self-aligning ball bearings feature two rows of balls and a common spherical raceway in the outer ring, allowing the bearing to accommodate angular misalignment between the shaft and housing. This design compensates for mounting errors and shaft deflection during operation.
These bearings are commonly used in applications where misalignment is unavoidable, such as agricultural equipment, conveyor systems, woodworking machinery, and textile equipment. The 50 mm bore diameter makes this bearing suitable for medium-duty industrial applications.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
50 mm
Outside Diameter (OD)
90 mm
Width
23 mm
Sealing
Open
Precision Class
ISO P0
Series
22
Bearing Type
Self-aligning ball bearing
Other Features
Double Row | Self Aligning Ball Bearing
Component
Assembly
Weight (kg)
0.59
Basic Number
2210
UNSPSC
31171532
