2207

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$34.80 USD
$34.80 USD
Sale Sold out
Bore35 mm 1.378 in
Outside dia.72 mm 2.8346 in
Width23 mm 0.9055 in
TypeSelf-aligning ball bearing
SealingOpen
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
1 1

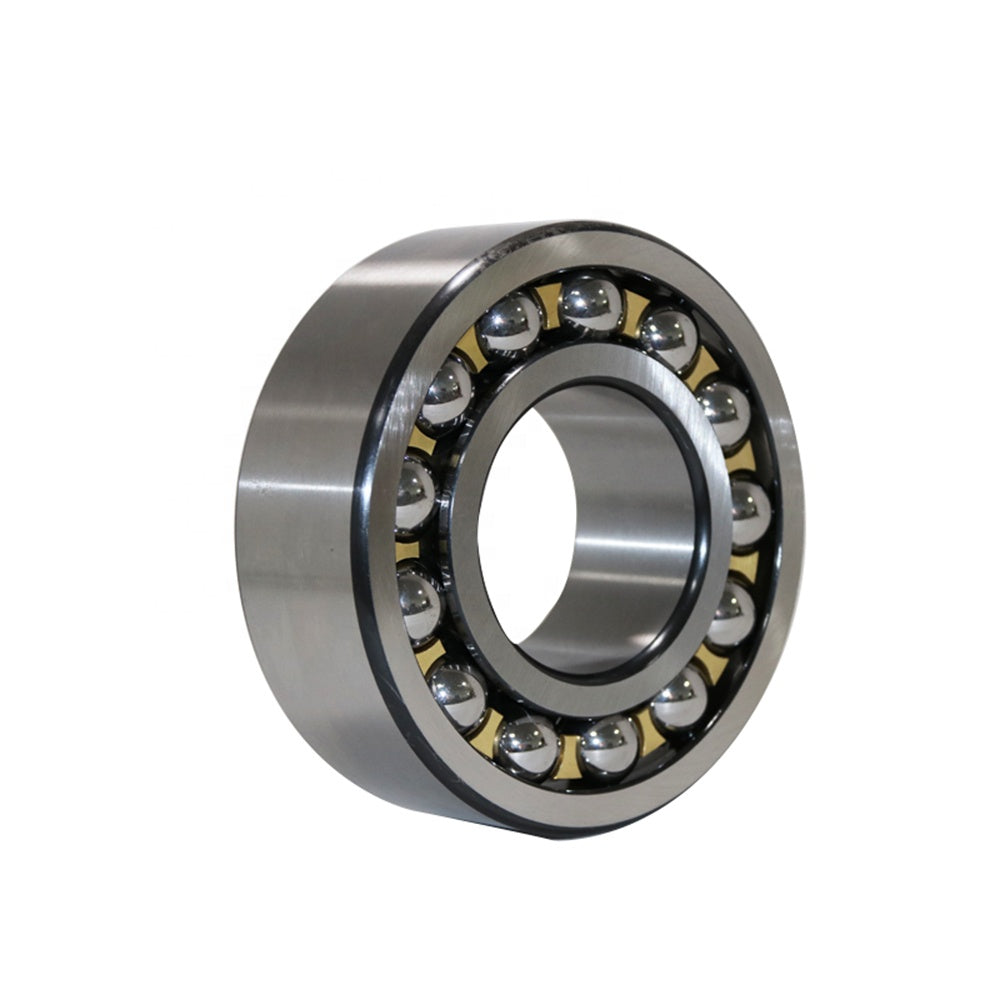

Image is for illustration purposes only.

What 2207 means

CodePositionMeaning
22 Series Series 22: self-aligning ball bearing, wide (width series 2), diameter series 2 (light). The type digit 1 is left out of these numbers
07 Bore Bore code 07 × 5 = 35 mm

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

2207 specifications

Specification Metric Inch Basis
Bore (d) 35 mm 1.378 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 72 mm 2.8346 in Supplier catalogue listing
Width (B) 23 mm 0.9055 in Supplier catalogue listing
Bearing type Self-aligning ball bearing Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Bore Cylindrical (straight) bore Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation
Material Steel Supplier catalogue listing

2207 is a self-aligning ball bearing, 35 mm bore × 72 mm OD × 23 mm wide (1.378 × 2.8346 × 0.9055 in).

Self-aligning ball bearings feature a double row of balls running on a spherical outer ring raceway, allowing the bearing to accommodate angular misalignment between the shaft and housing. The 2207 has a 35 mm bore diameter and belongs to the 22 series.
