2211
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesRegular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
per
Couldn't load pickup availability
Bore55 mm
2.1654 in
Outside dia.100 mm
3.937 in
Width25 mm
0.9843 in
TypeSelf-aligning ball bearing
SealingOpen
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

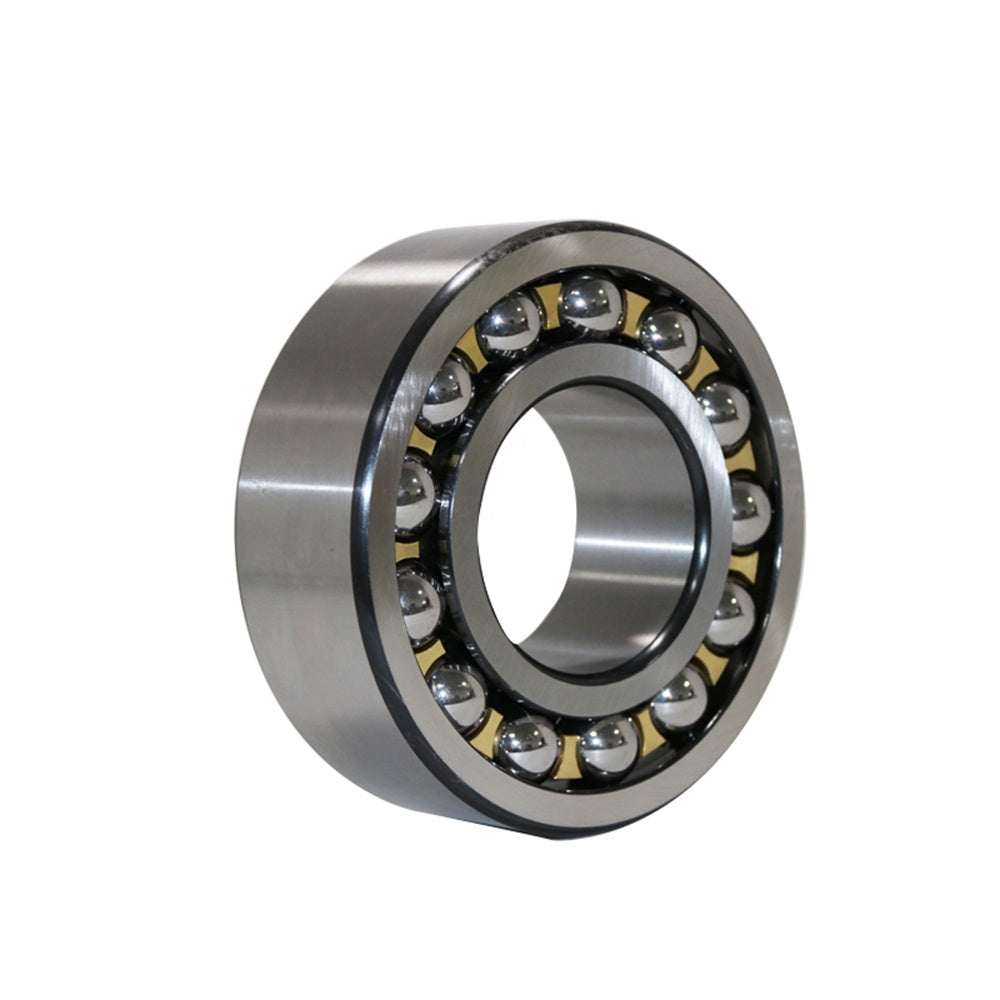

Image is for illustration purposes only.
What 2211 means
| Code | Position | Meaning |
|---|---|---|
22 |
Series | Series 22: self-aligning ball bearing, wide (width series 2), diameter series 2 (light). The type digit 1 is left out of these numbers |
11 |
Bore | Bore code 11 × 5 = 55 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2211 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 55 mm | 2.1654 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 100 mm | 3.937 in | Supplier catalogue listing |
| Width (B) | 25 mm | 0.9843 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
2211 is a self-aligning ball bearing, 55 mm bore × 100 mm OD × 25 mm wide (2.1654 × 3.937 × 0.9843 in).
Self-aligning ball bearings feature two rows of balls running on a common spherical outer ring raceway, allowing the bearing to accommodate angular misalignment between the shaft and housing. The 2211 has a 55 mm bore diameter and belongs to the 22 series.
Model Number: 2211
Bore/Inner Diameter Inch: 2.1654
Bore/Inner Diameter mm: 55
Outside Diameter Inch: 3.937
Outside Diameter mm: 100
Width Inch: 0.9843
Measurement Type
Metric
Inner Diameter (ID)
55 mm
Outside Diameter (OD)
100 mm
Width
25 mm
Sealing
Open
Precision Class
ISO P0
Series
22
Bearing Type
Self-aligning ball bearing
Other Features
Double Row | Self Aligning Ball Bearing
Component
Assembly
Weight (kg)
0.787
Basic Number
2211
UNSPSC
31171532
