W5204-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$31.37 USD
Regular price
Sale price
$31.37 USD
Unit price
per
Couldn't load pickup availability
Bore20 mm
0.7874 in
Outside dia.47 mm
1.8504 in
Width20.64 mm
0.8125 in
SealingDouble Sealed
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

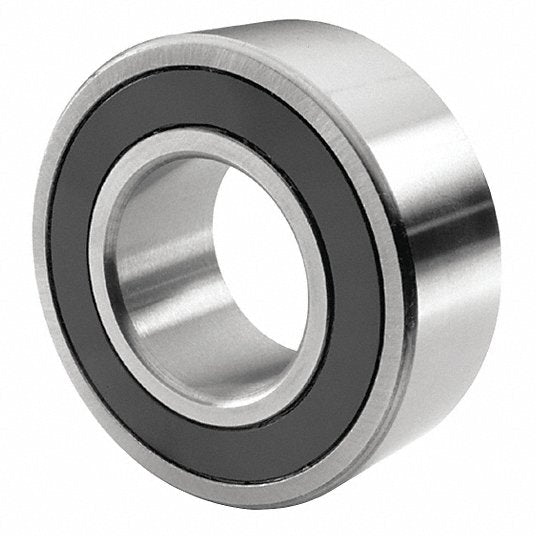

Image is for illustration purposes only.
W5204-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 20 mm | 0.7874 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Outside diameter (D) | 47 mm | 1.8504 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 20.64 mm | 0.8125 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
W5204-2RS
The W5204-2RS is a double row angular contact ball bearing with rubber seals on both sides (2RS). Double row ball bearings provide higher load capacity and rigidity compared to single row designs, accommodating combined radial and axial loads in both directions.
These sealed bearings are commonly used in agricultural equipment, conveyor systems, machine tools, and heavy-duty industrial machinery where increased load capacity and protection from contamination are required. The 2RS seals retain lubrication and prevent ingress of dirt and moisture.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
20 mm
Outside Diameter (OD)
47 mm
Width
20.6 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Double Row | Ball Bearing | Radial Load Design
Component
Assembly
Weight (kg)
0.17
Basic Number
W5204
UNSPSC
31171504
