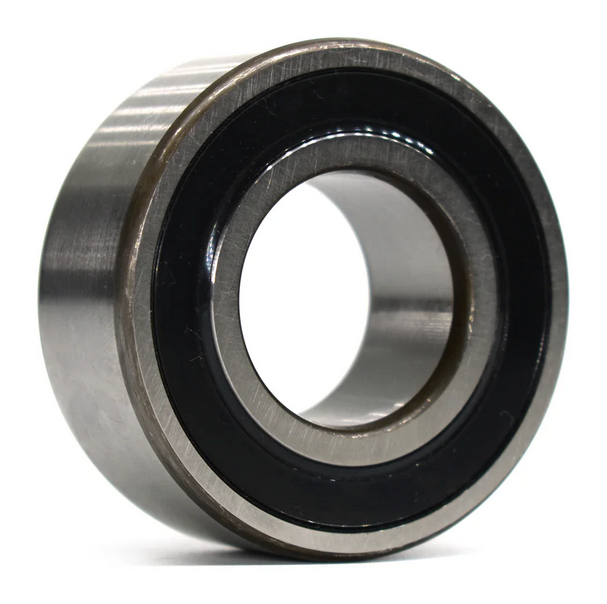

Image is for illustration purposes only.
W52052RS
The W52052RS is a double row ball bearing with rubber seals on both sides (2RS), designed to retain lubrication and exclude contaminants. Double row ball bearings provide higher load capacity than single row designs and can accommodate radial loads and moderate axial loads in both directions.
These bearings are commonly used in agricultural equipment, construction machinery, electric motors, and conveyor systems where increased rigidity and load capacity are required. The sealed design makes them suitable for applications in moderately contaminated environments.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
52 mm
Width
23.8 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Double Row | Ball Bearing | Radial Load Design
Component
Assembly
Weight (kg)
0.19
Basic Number
W5205
UNSPSC
31171504
