R16
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$9.80 USD
Regular price
Sale price
$9.80 USD
Unit price
per
Couldn't load pickup availability
Bore1 in
25.4 mm
Outside dia.2 in
50.8 mm
Width3/8 in
9.52 mm
TypeInch-dimension radial ball bearing, R series (ABMA)
SealingOpen
Flat-rate shipping — calculated by weight at checkout

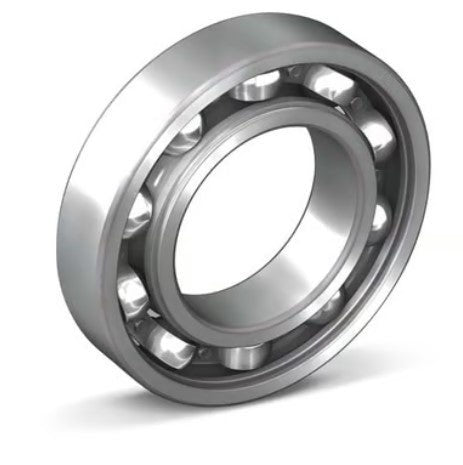

Image is for illustration purposes only.
What R16 means
| Code | Position | Meaning |
|---|---|---|
R |
Type | Inch-dimension radial ball bearing, R series (ABMA) |
16 |
Bore | Bore in sixteenths of an inch: 16/16 = 1 in |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
R16 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25.4 mm | 1 in (1) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 50.8 mm | 2 in (2) | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 9.52 mm | 3/8 in (0.375) | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Inch-dimension radial ball bearing, R series (ABMA) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
R16 is an inch-dimension radial ball bearing, R series (ABMA), 1 in bore × 2 in OD × 3/8 in wide (25.4 × 50.8 × 9.52 mm).
Series: R
Model Number: R16
Bore/Inner Diameter Inch: 1
Bore/Inner Diameter mm: 25.4
Outside Diameter Inch: 2
Outside Diameter mm: 50.8
