R12-ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$7.16 USD
$7.16 USD
Sale Sold out
Bore3/4 in 19.05 mm
Outside dia.1-5/8 in 41.27 mm
Width7/16 in 11.11 mm
TypeInch-dimension radial ball bearing, R series (ABMA)
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout
1 1

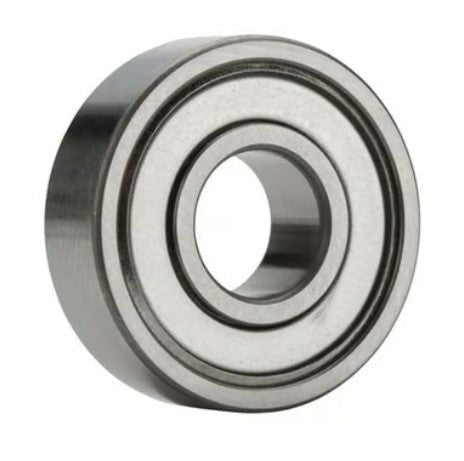

Image is for illustration purposes only.

What R12-ZZ means

CodePositionMeaning
R Type Inch-dimension radial ball bearing, R series (ABMA)
12 Bore Bore in sixteenths of an inch: 12/16 = 3/4 in
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

R12-ZZ specifications

Specification Metric Inch Basis
Bore (d) 19.05 mm 3/4 in (0.75) ISO table for this designation, confirmed by supplier data
Outside diameter (D) 41.27 mm 1-5/8 in (1.625) Maker's catalogue (PEER Bearing), confirmed by supplier data
Width (B) 11.11 mm 7/16 in (0.4375) Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Inch-dimension radial ball bearing, R series (ABMA) Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation

R12-ZZ is an inch-dimension radial ball bearing, R series (ABMA), 3/4 in bore × 1-5/8 in OD × 7/16 in wide (19.05 × 41.27 × 11.11 mm). It has metal shields on both sides.

The R12-ZZ is a single row deep groove ball bearing with double metal shields (ZZ). This bearing features a 0.75 inch (3/4 inch) bore diameter and provides protection against contaminants while retaining lubrication for extended service life.

R12 ZZ R Series Ball Bearing
