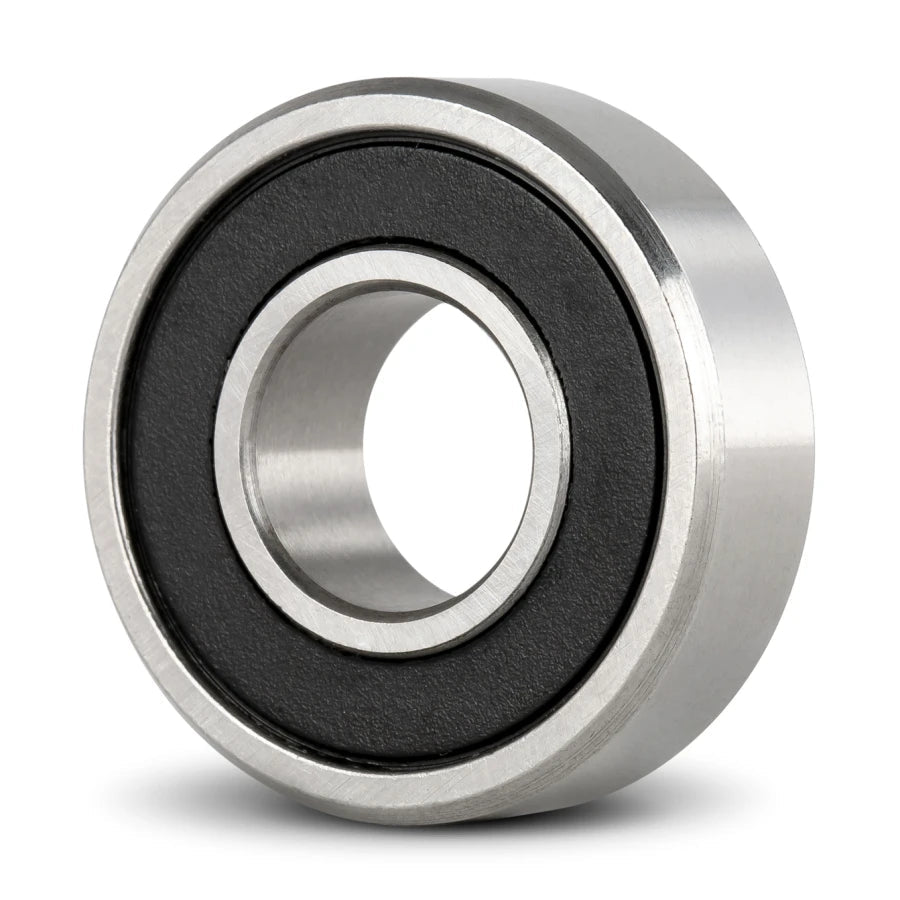

Image is for illustration purposes only.
R12-2RS
The R12-2RS is a single row deep groove ball bearing with double rubber seals (2RS) on both sides. The seals provide protection against contaminant ingress and retain lubrication for extended service life in typical operating conditions.
Deep groove ball bearings are versatile and widely used in electric motors, pumps, conveyors, agricultural equipment, and general industrial machinery where radial and light thrust loads are present. The sealed design makes this bearing suitable for applications in moderately contaminated environments.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
3 mm / 3/4 in
Outside Diameter (OD)
1 5/8 in
Width
7/16 in
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Bearing Type
Single-row
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.047
Basic Number
R12
UNSPSC
31171504
