R18
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$14.22 USD
Regular price
Sale price
$14.22 USD
Unit price
per
Couldn't load pickup availability
Bore1-1/8 in
28.57 mm
Outside dia.2-1/8 in
53.97 mm
Width3/8 in
9.52 mm
TypeInch-dimension radial ball bearing, R series (ABMA)
SealingOpen
Flat-rate shipping — calculated by weight at checkout

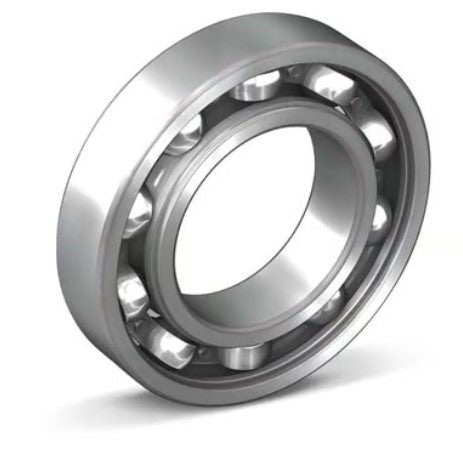

Image is for illustration purposes only.
What R18 means
| Code | Position | Meaning |
|---|---|---|
R |
Type | Inch-dimension radial ball bearing, R series (ABMA) |
18 |
Bore | Bore in sixteenths of an inch: 18/16 = 1-1/8 in |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
R18 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 28.57 mm | 1-1/8 in (1.125) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 53.97 mm | 2-1/8 in (2.125) | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 9.52 mm | 3/8 in (0.375) | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Inch-dimension radial ball bearing, R series (ABMA) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
R18 is an inch-dimension radial ball bearing, R series (ABMA), 1-1/8 in bore × 2-1/8 in OD × 3/8 in wide (28.57 × 53.97 × 9.52 mm).
Series: R
Model Number: R18
Bore/Inner Diameter Inch: 1.0156
Bore/Inner Diameter mm: 25.797
Outside Diameter Inch: 2.125
Outside Diameter mm: 53.975
