Image is for illustration purposes only.
HK0609E;PBL449

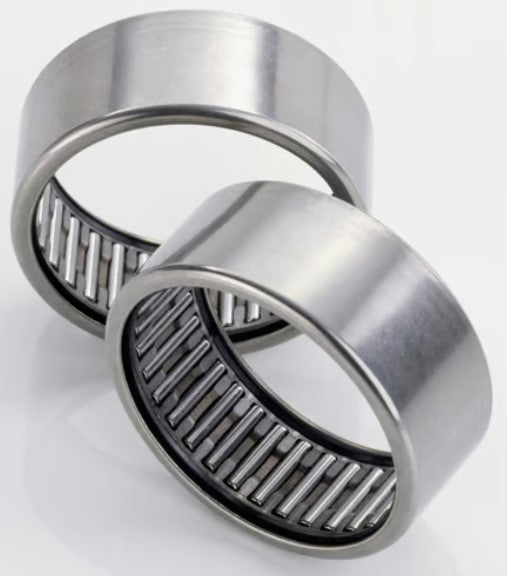

Drawn cup needle roller bearings are compact radial bearings with thin-walled outer rings drawn from steel sheet. They contain needle rollers and are designed for applications with limited radial space where high load capacity is required.
These bearings are commonly used in small electric motors, automotive components, power tools, and office equipment. They are particularly suited for applications requiring compact design and where the housing bore can serve as the raceway for cost-effective installations.
HK0609E;PBL449 60579035082 Drawn Cup Needle Roller Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
6 mm
Outside Diameter (OD)
10 mm
Width
9 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Bearing Type
drawn cup needle roller bearing
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.002
Basic Number
0609E
UNSPSC
31171512
