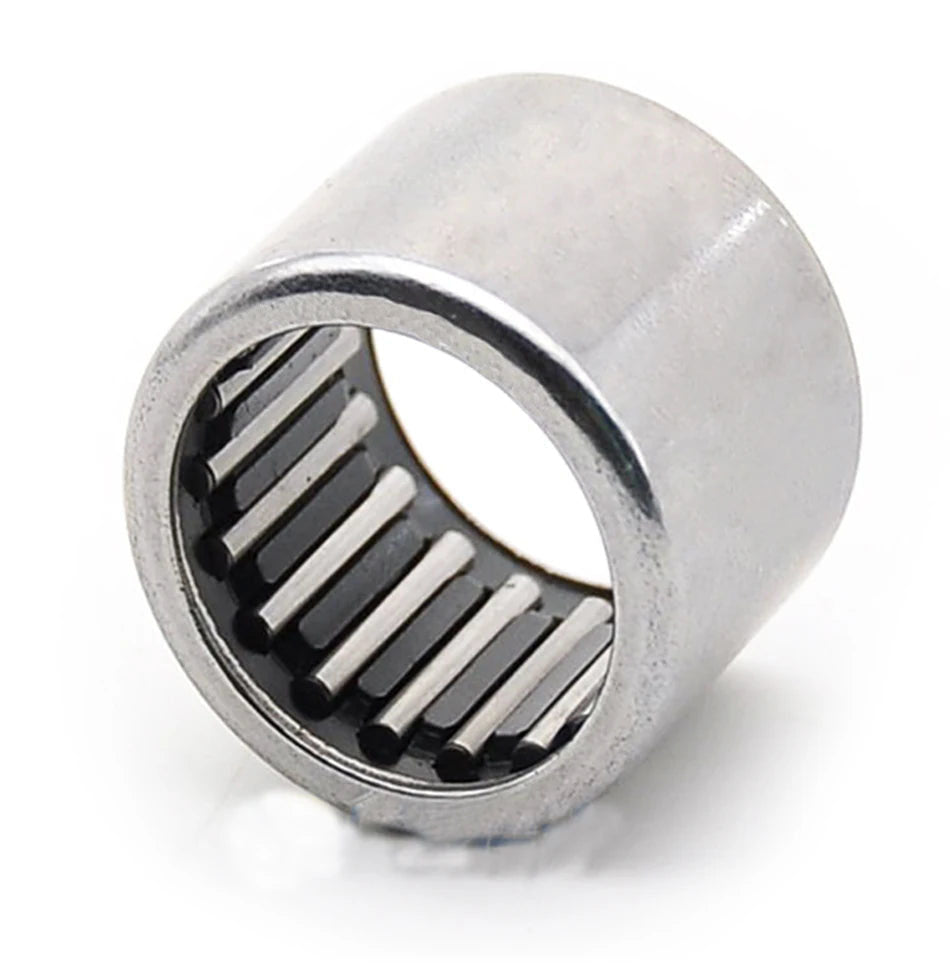

Image is for illustration purposes only.
HK0609E
The HK0609E is an open type drawn cup needle roller bearing with a cage to maintain precise needle spacing. This compact bearing features a thin-walled outer ring drawn from steel sheet and precision needle rollers, providing high load capacity in minimal radial space with a 6 mm bore, 9.996 mm outer diameter, and 9 mm width.
Drawn cup needle roller bearings are widely used in automotive transmissions, small electric motors, power tools, and office equipment where space is limited and radial loads must be supported efficiently. The open design allows for easy installation and lubrication access in applications with moderate contamination control.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
6 mm
Outside Diameter (OD)
10 mm
Width
9 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Cage
Caged
Bearing Type
Outer Ring & Roller Assembly
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.002
Basic Number
HK0609
UNSPSC
31171512
