HK0608

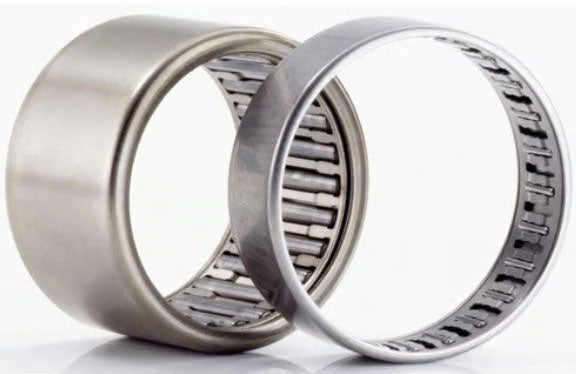

The HK0608 is a drawn cup needle roller bearing without an inner ring, designed for applications where the shaft serves as the raceway. This compact bearing features a thin-walled outer ring and small-diameter needle rollers that provide high load capacity in minimal radial space.
Commonly used in small appliances, office equipment, automotive components, and other machinery where space is limited. The bearing requires a hardened and ground shaft for proper operation and optimal service life.
HK0608 Open Type, Caged Drawn Cup Needle Roller Bearing, 6 mm Inner Diameter x 10 mm Outer Diameter x 8 mm Width
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
6 mm
Outside Diameter (OD)
10 mm
Width
8 mm
Sealing
Open
Precision Class
ISO P0
Cage
Steel
Series
HK Series
Bearing Type
Needle Roller Bearings
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.002
Basic Number
HK0608
UNSPSC
31171512
