6817-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

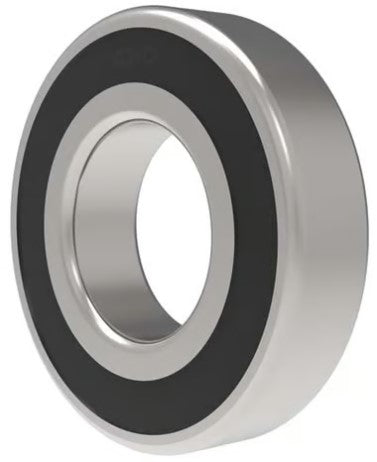

Image is for illustration purposes only.
What 6817-2RS means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
8 |
Diameter series | Diameter series 8 (extra thin): fixes OD and width for the bore (ISO 15) |
17 |
Bore | Bore code 17 × 5 = 85 mm |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6817-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 85 mm | 3.3465 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 13 mm | 0.5118 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6817 2RSH | Brand suffix convention for this ISO size |
| TIMKEN | 6817 2RS | Brand suffix convention for this ISO size |
| FAG | 6817 2RSR | Brand suffix convention for this ISO size |
| NSK | 6817 DDU | Brand suffix convention for this ISO size |
| NTN | 6817 LLU | Brand suffix convention for this ISO size |
| KOYO | 6817 2RS | Brand suffix convention for this ISO size |
| NACHI | 6817 2NSE | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6817-2RS is a deep groove ball bearing, 85 mm bore × 110 mm OD × 13 mm wide (3.3465 × 4.3307 × 0.5118 in). It has rubber contact seals on both sides. Other makers sell the same size as SKF 6817 2RSH, TIMKEN 6817 2RS, FAG 6817 2RSR, NSK 6817 DDU.
The 6817-2RS is a deep groove ball bearing from the 6800 series, featuring an 85mm bore diameter, 110mm outside diameter, and 13mm width. This single row bearing is equipped with contact rubber seals on both sides (2RS) to protect against contaminants and retain lubrication.
