6817
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

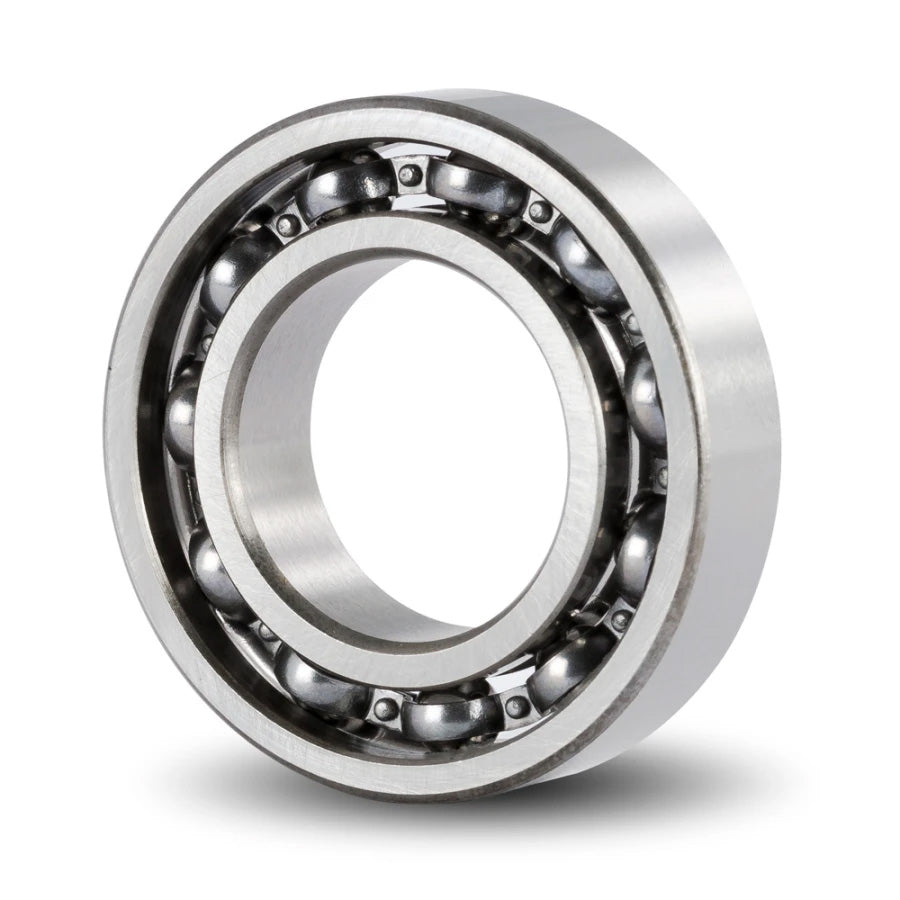

Image is for illustration purposes only.
What 6817 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
8 |
Diameter series | Diameter series 8 (extra thin): fixes OD and width for the bore (ISO 15) |
17 |
Bore | Bore code 17 × 5 = 85 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6817 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 85 mm | 3.3465 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 13 mm | 0.5118 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6817 | Brand suffix convention for this ISO size |
| TIMKEN | 6817 | Brand suffix convention for this ISO size |
| FAG | 6817 | Brand suffix convention for this ISO size |
| NSK | 6817 | Brand suffix convention for this ISO size |
| NTN | 6817 | Brand suffix convention for this ISO size |
| KOYO | 6817 | Brand suffix convention for this ISO size |
| NACHI | 6817 | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6817 is a deep groove ball bearing, 85 mm bore × 110 mm OD × 13 mm wide (3.3465 × 4.3307 × 0.5118 in). It has no seals or shields (open). Other makers sell the same size as SKF 6817, TIMKEN 6817, FAG 6817, NSK 6817.
The 6817 is a deep groove ball bearing with an 85mm bore diameter, 110mm outside diameter, and 13mm width. This open design bearing features no seals or shields, making it suitable for applications where external sealing is provided or contamination is not a concern.
Bore/Inner Diameter Inch: 3.346
Bore/Inner Diameter mm: 85
Seal Type: Open
