6816-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Image is for illustration purposes only.
What 6816-2RS means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
8 |
Diameter series | Diameter series 8 (extra thin): fixes OD and width for the bore (ISO 15) |
16 |
Bore | Bore code 16 × 5 = 80 mm |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6816-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 100 mm | 3.937 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 10 mm | 0.3937 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6816 2RSH | Brand suffix convention for this ISO size |
| TIMKEN | 6816 2RS | Brand suffix convention for this ISO size |
| FAG | 6816 2RSR | Brand suffix convention for this ISO size |
| NSK | 6816 DDU | Brand suffix convention for this ISO size |
| NTN | 6816 LLU | Brand suffix convention for this ISO size |
| KOYO | 6816 2RS | Brand suffix convention for this ISO size |
| NACHI | 6816 2NSE | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6816-2RS is a deep groove ball bearing, 80 mm bore × 100 mm OD × 10 mm wide (3.1496 × 3.937 × 0.3937 in). It has rubber contact seals on both sides. Other makers sell the same size as SKF 6816 2RSH, TIMKEN 6816 2RS, FAG 6816 2RSR, NSK 6816 DDU.
The 6816-2RS is a deep groove ball bearing from the 6800 series, featuring an 80mm bore diameter, 100mm outside diameter, and 10mm width. This single row bearing is equipped with contact rubber seals on both sides (2RS) to protect against contamination while retaining lubrication.

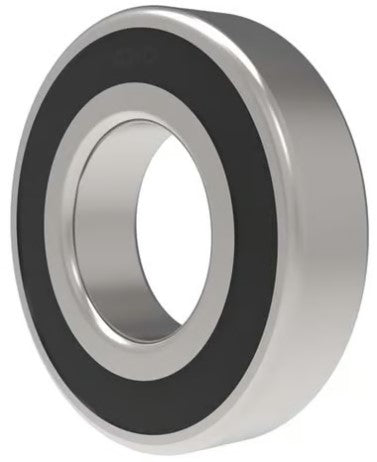

6816-2RS 6800 (61800) Series Ball Bearing
