51232
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Unit price
per
Couldn't load pickup availability
Bore160 mm
6.2992 in
Outside dia.225 mm
8.8583 in
Height51 mm
2.0079 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

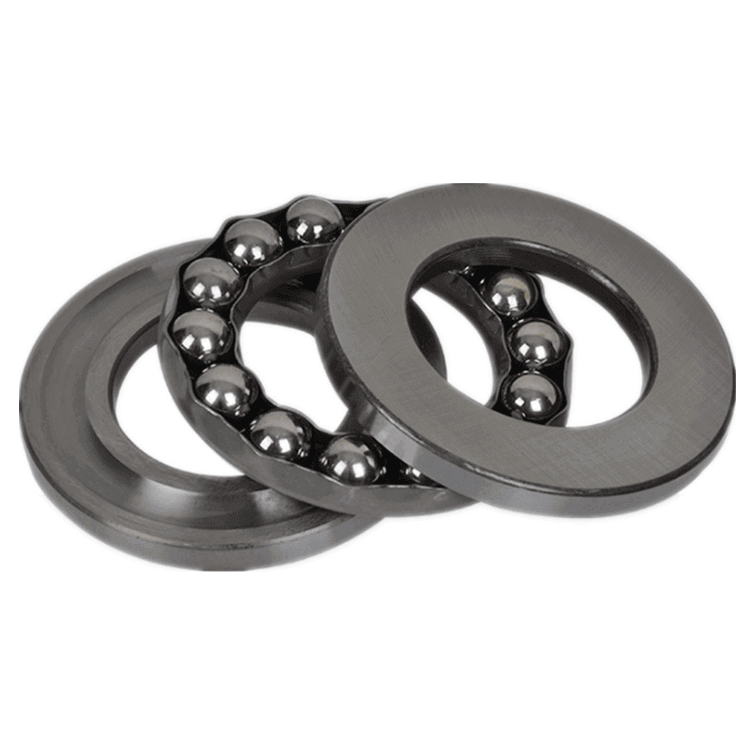

Image is for illustration purposes only.
What 51232 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
2 |
Diameter series | Diameter series 2 (light) |
32 |
Bore | Bore code 32 × 5 = 160 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51232 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 160 mm | 6.2992 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 225 mm | 8.8583 in | Supplier catalogue listing |
| Height (H) | 51 mm | 2.0079 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51232 is a thrust ball bearing, 160 mm bore × 225 mm OD × 51 mm wide (6.2992 × 8.8583 × 2.0079 in).
The 51232 is a thrust ball bearing designed to support axial loads in a single direction. With a 160mm bore diameter, this bearing is suited for medium to large industrial applications requiring precise axial load management.
Inner Diameter (ID)
160 mm
Outside Diameter (OD)
225 mm
Width
51 mm
Series
512
Bearing Type
Thrust ball bearing
