51307
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$25.83 USD
Regular price
Sale price
$25.83 USD
Unit price
per
Couldn't load pickup availability
Bore35 mm
1.378 in
Outside dia.68 mm
2.6772 in
Height24 mm
0.9449 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

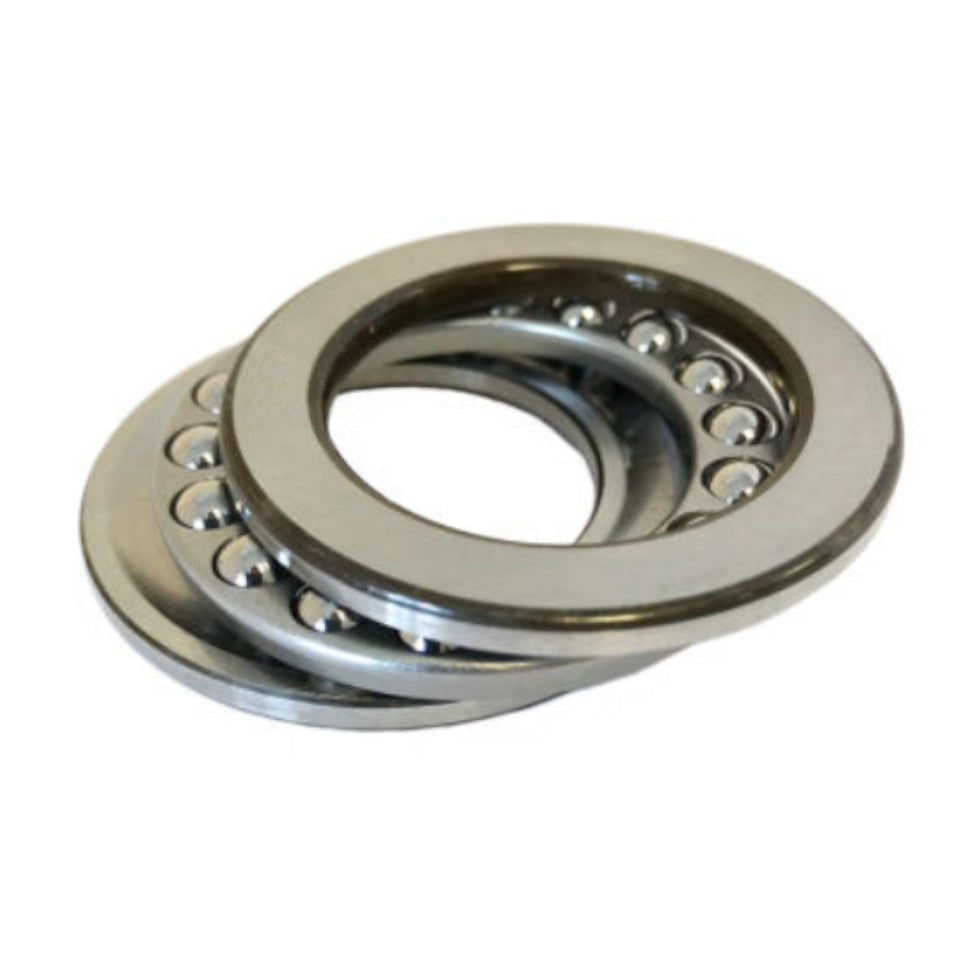

Image is for illustration purposes only.
What 51307 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
3 |
Diameter series | Diameter series 3 (medium) |
07 |
Bore | Bore code 07 × 5 = 35 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51307 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 68 mm | 2.6772 in | Supplier catalogue listing |
| Height (H) | 24 mm | 0.9449 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51307 is a thrust ball bearing, 35 mm bore × 68 mm OD × 24 mm wide (1.378 × 2.6772 × 0.9449 in).
The 51307 is a thrust ball bearing from the 513 series with a 35 mm bore diameter. Thrust ball bearings are designed to support axial loads in a single direction and accommodate high speeds with minimal friction.
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
68 mm
Width
24 mm
Sealing
Open
Precision Class
ISO P0
Series
513
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
0.39
Basic Number
51307
UNSPSC
31171552
