51222

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$225.00 USD
$225.00 USD
Sale Sold out
Bore110 mm 4.3307 in
Outside dia.160 mm 6.2992 in
Height38 mm 1.4961 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

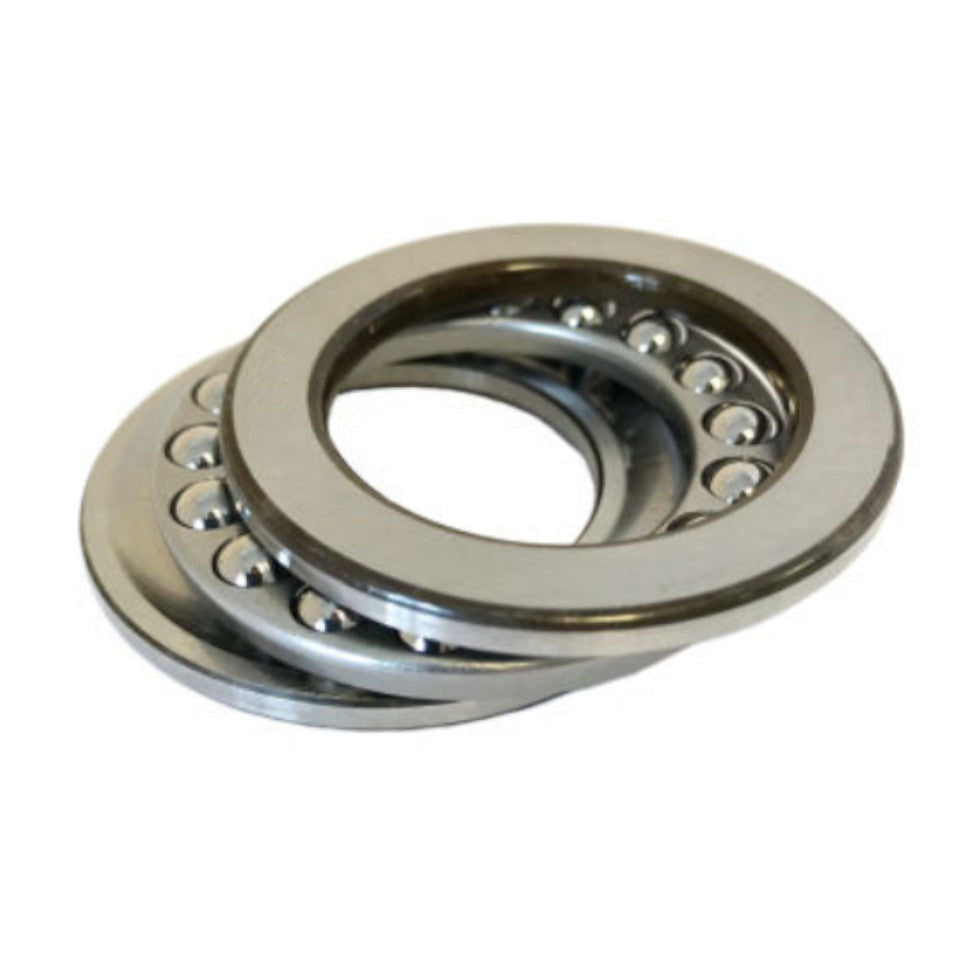

  • 51222 Thrust Ball Bearings
1 1

Image is for illustration purposes only.

What 51222 means

CodePositionMeaning
5 Type Thrust ball bearing
1 Height series Height series 1
2 Diameter series Diameter series 2 (light)
22 Bore Bore code 22 × 5 = 110 mm

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

51222 specifications

Specification Metric Inch Basis
Bore (d) 110 mm 4.3307 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 160 mm 6.2992 in Supplier catalogue listing
Height (H) 38 mm 1.4961 in Supplier catalogue listing
Bearing type Thrust ball bearing Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

51222 is a thrust ball bearing, 110 mm bore × 160 mm OD × 38 mm wide (4.3307 × 6.2992 × 1.4961 in).

The 51222 is a thrust ball bearing from the 512 series, designed with a 110 mm bore diameter to support axial loads in a single direction. Thrust ball bearings use ball rolling elements between hardened raceways to accommodate high-speed operation with relatively light to moderate thrust loads.
