51215
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesRegular price
$68.49 USD
Regular price
Sale price
$68.49 USD
Unit price
per
Couldn't load pickup availability
Bore75 mm
2.9528 in
Outside dia.110 mm
4.3307 in
Height27 mm
1.063 in
TypeThrust ball bearing
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

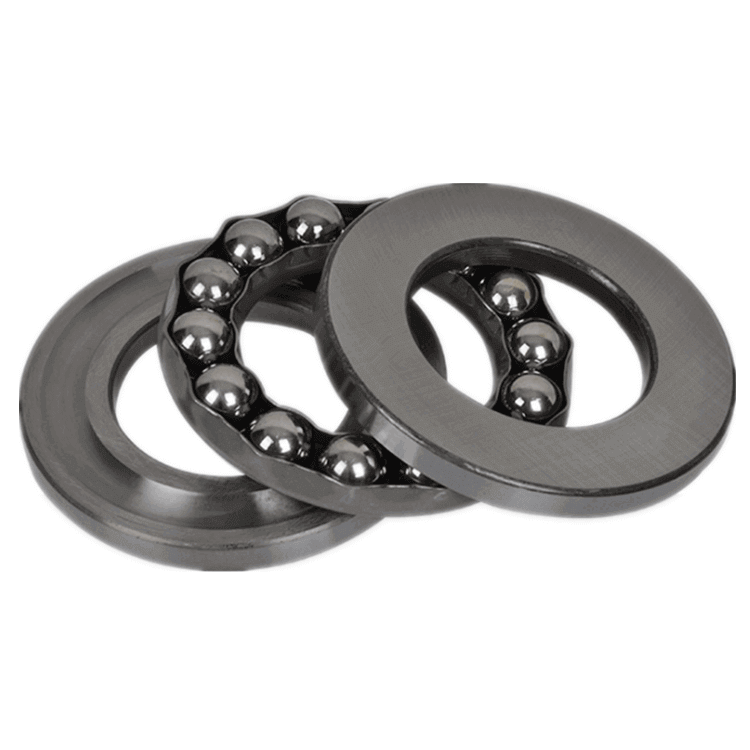

Image is for illustration purposes only.
What 51215 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
2 |
Diameter series | Diameter series 2 (light) |
15 |
Bore | Bore code 15 × 5 = 75 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51215 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 75 mm | 2.9528 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 110 mm | 4.3307 in | Supplier catalogue listing |
| Height (H) | 27 mm | 1.063 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51215 is a thrust ball bearing, 75 mm bore × 110 mm OD × 27 mm wide (2.9528 × 4.3307 × 1.063 in).
The 51215 is a thrust ball bearing with a 75 mm bore diameter from the 512 series. Thrust ball bearings are designed to support axial loads in one direction and provide precise axial positioning of rotating components.
Measurement Type
Metric
Inner Diameter (ID)
75 mm
Outside Diameter (OD)
110 mm
Width
27 mm
Sealing
Open
Precision Class
ISO P0
Series
512
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
0.86
Basic Number
51215
UNSPSC
31171552
