32026XJ
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

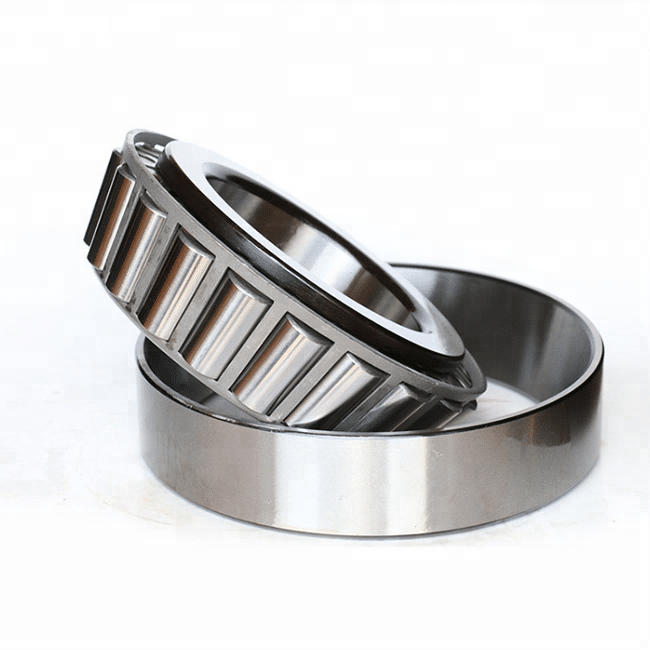

Image is for illustration purposes only.
What 32026XJ means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
0 |
Diameter series | Diameter series 0 (extra light) |
26 |
Bore | Bore code 26 × 5 = 130 mm |
XJ |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
32026XJ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 130 mm | 5.1181 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 200 mm | 7.874 in | Supplier catalogue listing |
| Width, assembled (T) | 45 mm | 1.7717 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Cage | Pressed Steel | Supplier catalogue listing | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- TIMKEN 32026XM (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32026XJ is a tapered roller bearing (metric, ISO 355), 130 mm bore × 200 mm OD × 45 mm wide (5.1181 × 7.874 × 1.7717 in).
The 32026XJ is a metric tapered roller bearing with a 130 mm bore diameter, conforming to ISO 355 standards. Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and axial loads efficiently, with the ability to support thrust loads in one direction.
