32026
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

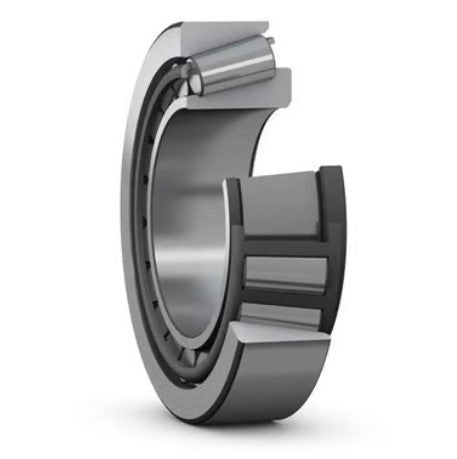

Image is for illustration purposes only.
What 32026 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
0 |
Diameter series | Diameter series 0 (extra light) |
26 |
Bore | Bore code 26 × 5 = 130 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
32026 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 130 mm | 5.1181 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 200 mm | 7.874 in | Supplier catalogue listing |
| Width, assembled (T) | 45 mm | 1.7717 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (1): confirm suffix codes before ordering
- TIMKEN 32026XM (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32026 is a tapered roller bearing (metric, ISO 355), 130 mm bore × 200 mm OD × 45 mm wide (5.1181 × 7.874 × 1.7717 in).
The 32026 is a metric tapered roller bearing from the ISO 355 standard 320 series, designed with a 130 mm bore diameter. Tapered roller bearings use conical rolling elements to handle combined radial and axial loads simultaneously, with load capacity proportional to the contact angle.
