32008XJ
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

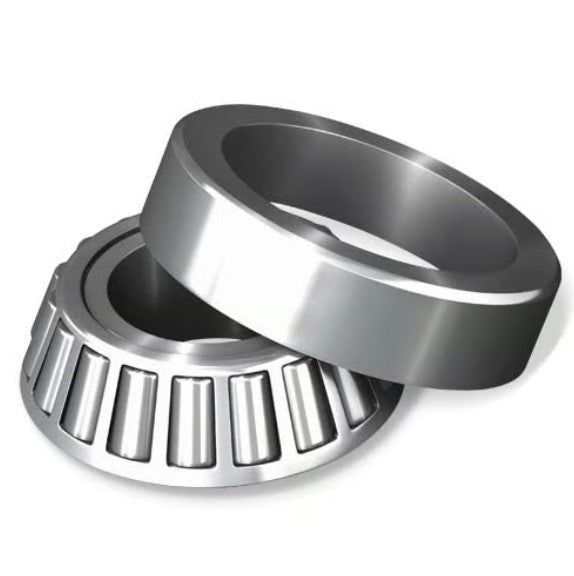

Image is for illustration purposes only.
What 32008XJ means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
0 |
Diameter series | Diameter series 0 (extra light) |
08 |
Bore | Bore code 08 × 5 = 40 mm |
XJ |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
32008XJ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 40 mm | 1.5748 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 68 mm | 2.6772 in | Supplier catalogue listing |
| Width, assembled (T) | 19 mm | 0.748 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 32008XJ | Timken Interchange Guide |
Also listed in manufacturer interchange tables (6): confirm suffix codes before ordering
- SKF 32008X (Timken Interchange Guide)
- TIMKEN 32008 (Timken Interchange Guide)
- FAG 32008XA (Timken Interchange Guide)
- NSK 32008X (SKF Master Interchange)
- NTN 32008 (SKF Master Interchange)
- KOYO 32008 (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32008XJ is a tapered roller bearing (metric, ISO 355), 40 mm bore × 68 mm OD × 19 mm wide (1.5748 × 2.6772 × 0.748 in). Published interchange tables list it as equivalent to SKF 32008XJ.
The 32008XJ is a metric tapered roller bearing with a 40 mm bore diameter, conforming to ISO 355 standards. Tapered roller bearings use conical rolling elements to support combined radial and axial loads, with load capacity increasing with the contact angle.
Bore/Inner Diameter Inch: 1.575
Bore/Inner Diameter mm: 40
Outside Diameter Inch: 2.677
Outside Diameter mm: 68
