32012
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability
Ships from our European partner stock — allow 5–8 business days

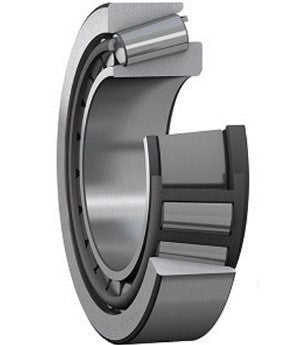

Image is for illustration purposes only.
What 32012 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
2 |
Width series | Width series 2 |
0 |
Diameter series | Diameter series 0 (extra light) |
12 |
Bore | Bore code 12 × 5 = 60 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
32012 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 60 mm | 2.3622 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 95 mm | 3.7402 in | Supplier catalogue listing |
| Width, assembled (T) | 23 mm | 0.9055 in | Supplier catalogue listing |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| NTN | 32012 | SKF Master Interchange |
Also listed in manufacturer interchange tables (5): confirm suffix codes before ordering
- SKF 32012X (Timken agricultural interchange)
- TIMKEN 32012X-90KA1 (Timken agricultural interchange)
- FAG 32012X (SKF Master Interchange)
- NTN 4T-32012X (Timken agricultural interchange)
- KOYO 32012JR (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
32012 is a tapered roller bearing (metric, ISO 355), 60 mm bore × 95 mm OD × 23 mm wide (2.3622 × 3.7402 × 0.9055 in). Published interchange tables list it as equivalent to NTN 32012.
The 32012 is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 60mm bore diameter. Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and axial loads efficiently.
