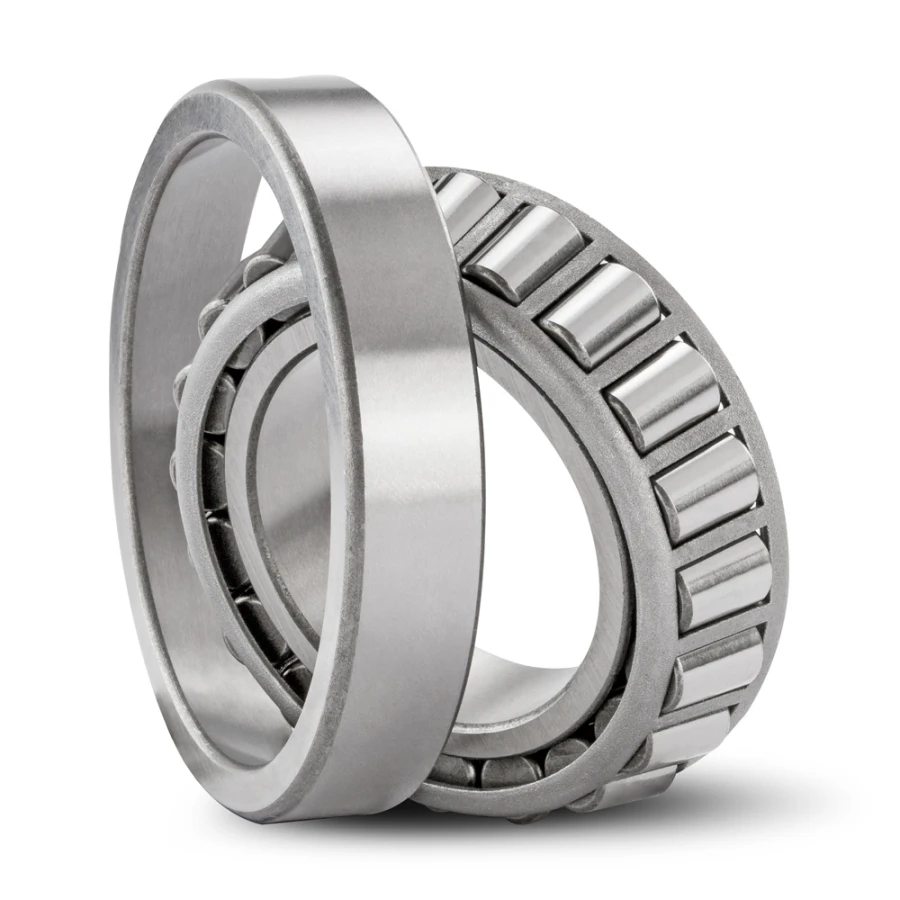

Image is for illustration purposes only.
32006X
The 32006X is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 30 mm bore diameter and belonging to the 320 series. Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and axial loads efficiently.
This bearing type is commonly used in automotive wheel hubs, gearboxes, industrial transmissions, and conveyor systems where both radial and thrust loads must be supported. The design allows for precise adjustment of bearing clearance during installation.
Interchange / cross reference
TIMKEN 32006TIMKEN 32006X
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
55 mm
Width
17 mm
Sealing
Open
Precision Class
ISO P0
Series
320
Bearing Type
Tapered roller bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
0.177
Basic Number
32006X
UNSPSC
31171516
