30226
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

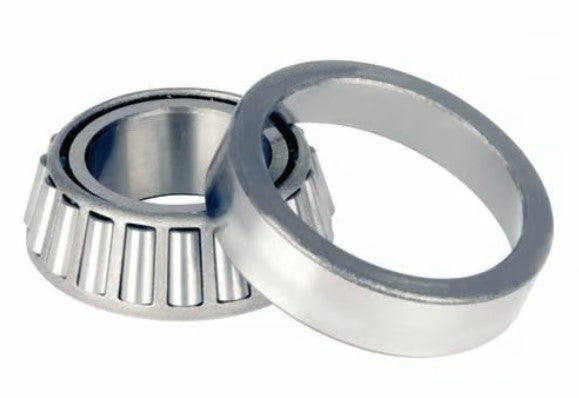

Image is for illustration purposes only.
What 30226 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
26 |
Bore | Bore code 26 × 5 = 130 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
30226 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 130 mm | 5.1181 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 230 mm | 9.0551 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 43.75 mm | 1.7224 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| TIMKEN | 30226M | Timken Interchange Guide |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30226 is a tapered roller bearing (metric, ISO 355), 130 mm bore × 230 mm OD × 43.75 mm wide (5.1181 × 9.0551 × 1.7224 in). Published interchange tables list it as equivalent to TIMKEN 30226M.
The 30226 is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 130mm bore diameter. Tapered roller bearings use conical raceways and tapered rollers to handle combined radial and axial loads efficiently.
Bore/Inner Diameter Inch: 5.1181
Bore/Inner Diameter mm: 130.0
Outside Diameter Inch: 9.0551
Outside Diameter mm: 230.0
Width Inch: 1.7224
Width mm: 43.75
