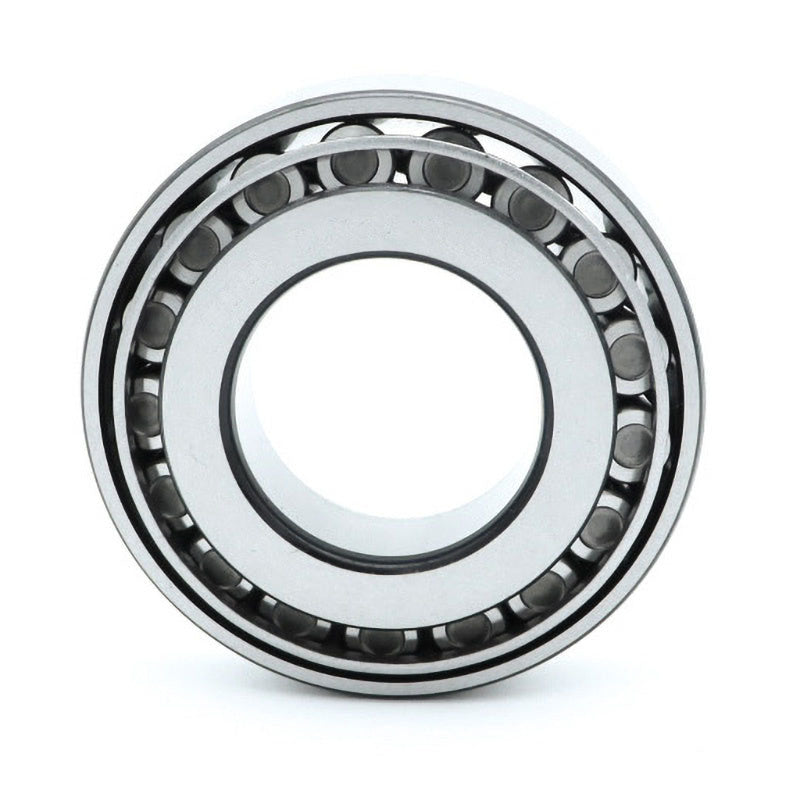

Image is for illustration purposes only.
30224J
The 30224J is a tapered roller bearing featuring a metric design conforming to ISO 355 standards. With a 120 mm bore diameter and belonging to the 302 series, this bearing utilizes tapered rollers between inner and outer ring raceways to handle combined radial and axial loads.
Tapered roller bearings are commonly used in heavy-duty industrial applications including gearboxes, automotive axles, construction equipment, and machine tool spindles where high load capacity and precise positioning are required. The separable design allows for easy mounting and adjustment of bearing clearance.
30224J
Outside Diameter Inch: 8.465
Outside Diameter mm: 215
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
120 mm
Outside Diameter (OD)
215 mm
Width
43.5 mm
Sealing
Open
Precision Class
ISO P0
Cage
Pressed Steel
Series
302
Bearing Type
Tapered roller bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
6.36
Basic Number
30224
UNSPSC
31171516
