30216J

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$85.37 USD
$85.37 USD
Sale Sold out
Bore80 mm 3.1496 in
Outside dia.140 mm 5.5118 in
Width, assembled28.25 mm 1.1122 in
TypeTapered roller bearing (metric, ISO 355)
SealingOpen
Flat-rate shipping — calculated by weight at checkout
Equivalent to TIMKEN 30216MDetails →

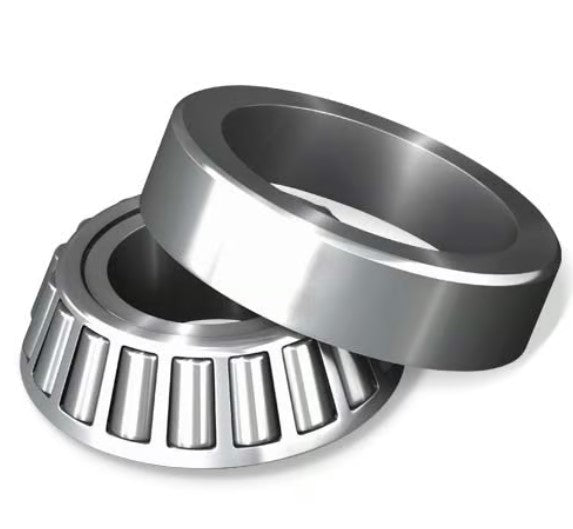

  • 30216J Taper Bearings
1 1

Image is for illustration purposes only.

What 30216J means

CodePositionMeaning
3 Type Tapered roller bearing (metric)
0 Width series Width series 0
2 Diameter series Diameter series 2 (light)
16 Bore Bore code 16 × 5 = 80 mm
J Cage Pressed steel cage

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

30216J specifications

Specification Metric Inch Basis
Bore (d) 80 mm 3.1496 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 140 mm 5.5118 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Width, assembled (T) 28.25 mm 1.1122 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Tapered roller bearing (metric, ISO 355) Stated by the designation
Seals / shields Open (no seals or shields) Stated by the designation
Cage Pressed steel cage Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

Equivalent to / interchanges with

BrandPart numberBasis
TIMKEN 30216M Timken Interchange Guide

Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables

30216J is a tapered roller bearing (metric, ISO 355), 80 mm bore × 140 mm OD × 28.25 mm wide (3.1496 × 5.5118 × 1.1122 in). It has a pressed steel cage. Published interchange tables list it as equivalent to TIMKEN 30216M.
