30213JR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

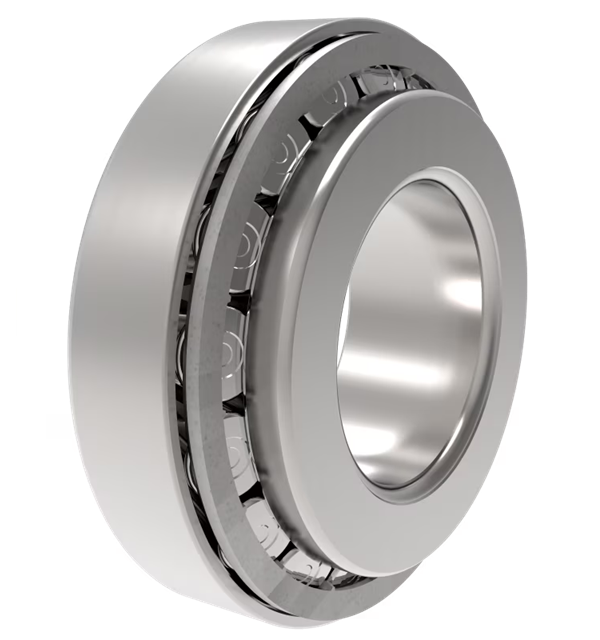

Image is for illustration purposes only.
What 30213JR means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
13 |
Bore | Bore code 13 × 5 = 65 mm |
JR |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
30213JR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 65 mm | 2.5591 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 120 mm | 4.7244 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 24.75 mm | 0.9744 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (2): confirm suffix codes before ordering
- TIMKEN 30213M (Timken Interchange Guide)
- FAG 30213A (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30213JR is a tapered roller bearing (metric, ISO 355), 65 mm bore × 120 mm OD × 24.75 mm wide (2.5591 × 4.7244 × 0.9744 in).
The 30213JR is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 65 mm bore diameter and belonging to the 302 series. Tapered roller bearings utilize conical raceways and tapered rollers to handle combined radial and axial loads efficiently.
