Bore15 mm
0.5906 in
Outside dia.35 mm
1.378 in
Width11 mm
0.4331 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

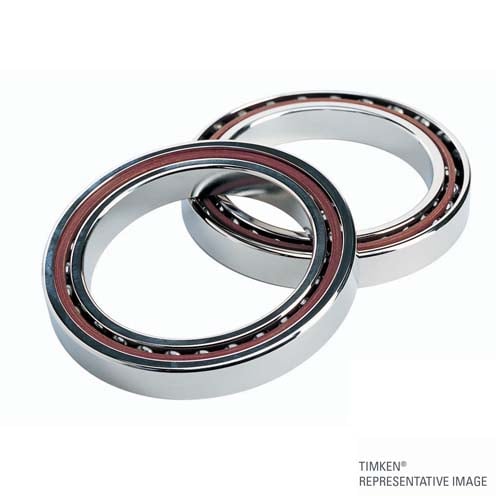

Image is for illustration purposes only.
2MM202WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 15 mm | 0.5906 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 11 mm | 0.4331 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 22 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |

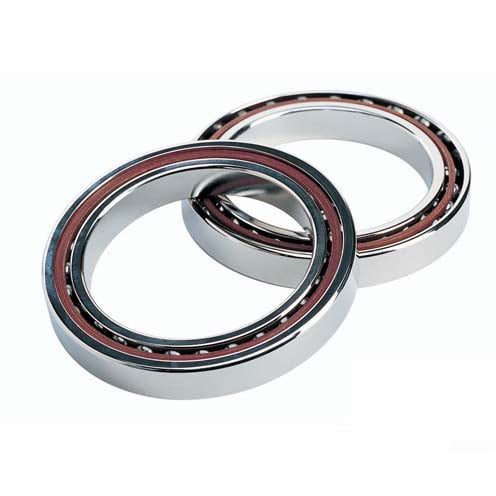

2MM202WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 15 mm bore × 35 mm OD × 11 mm wide (0.5906 × 1.378 × 0.4331 in).
Measurement Type
Metric
Inner Diameter (ID)
15 mm
Outside Diameter (OD)
35 mm
Width
22 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
22
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
0.088
Basic Number
2MM202
UNSPSC
31171504
