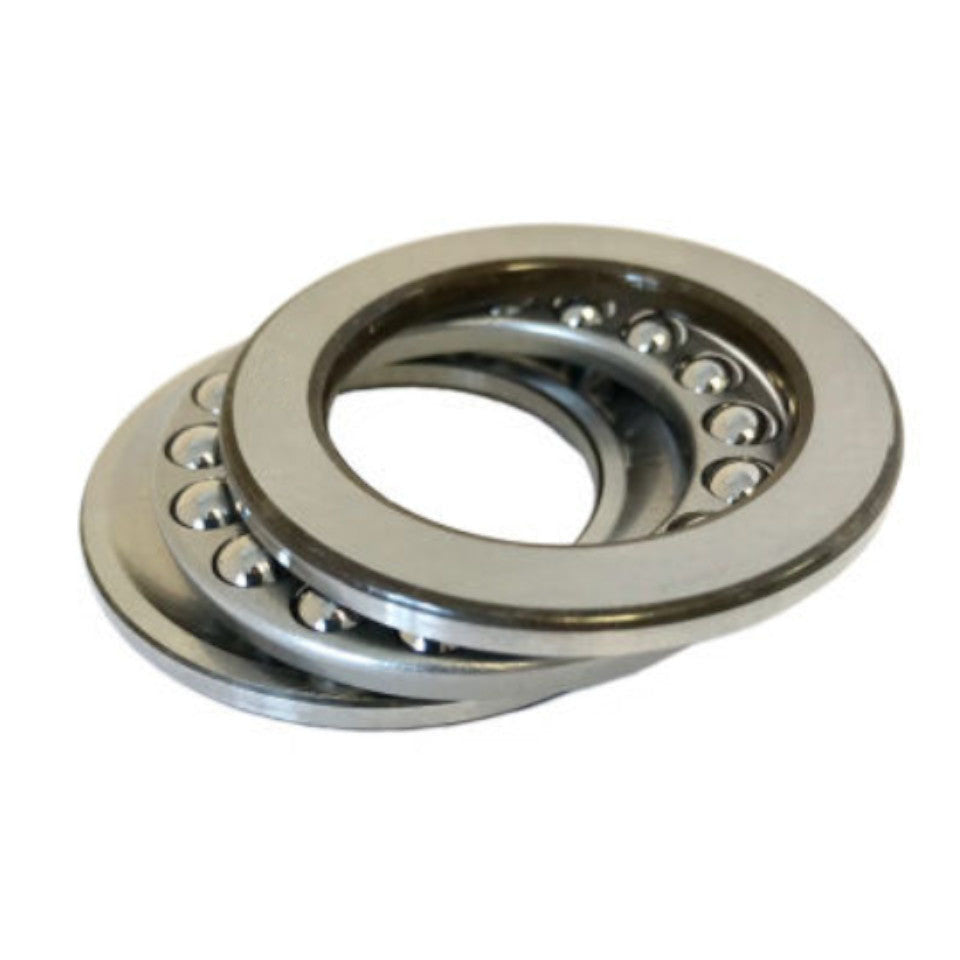

Image is for illustration purposes only.
2905
Thrust ball bearings are designed to support axial loads in one direction while allowing rotation between machine components. They consist of two hardened steel washers (raceways) with a ball and cage assembly positioned between them.
These bearings are commonly used in automotive transmissions, machine tool spindles, and other applications where pure thrust loads must be accommodated at moderate speeds. They require proper mounting on flat, rigid surfaces to achieve rated performance and service life.
Interchange / cross reference
TIMKEN 2063R
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
45 mm
Width
14 mm
Sealing
Open
Precision Class
ISO P0
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
0.093
Basic Number
2905
UNSPSC
31171552
