2305-2RS
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

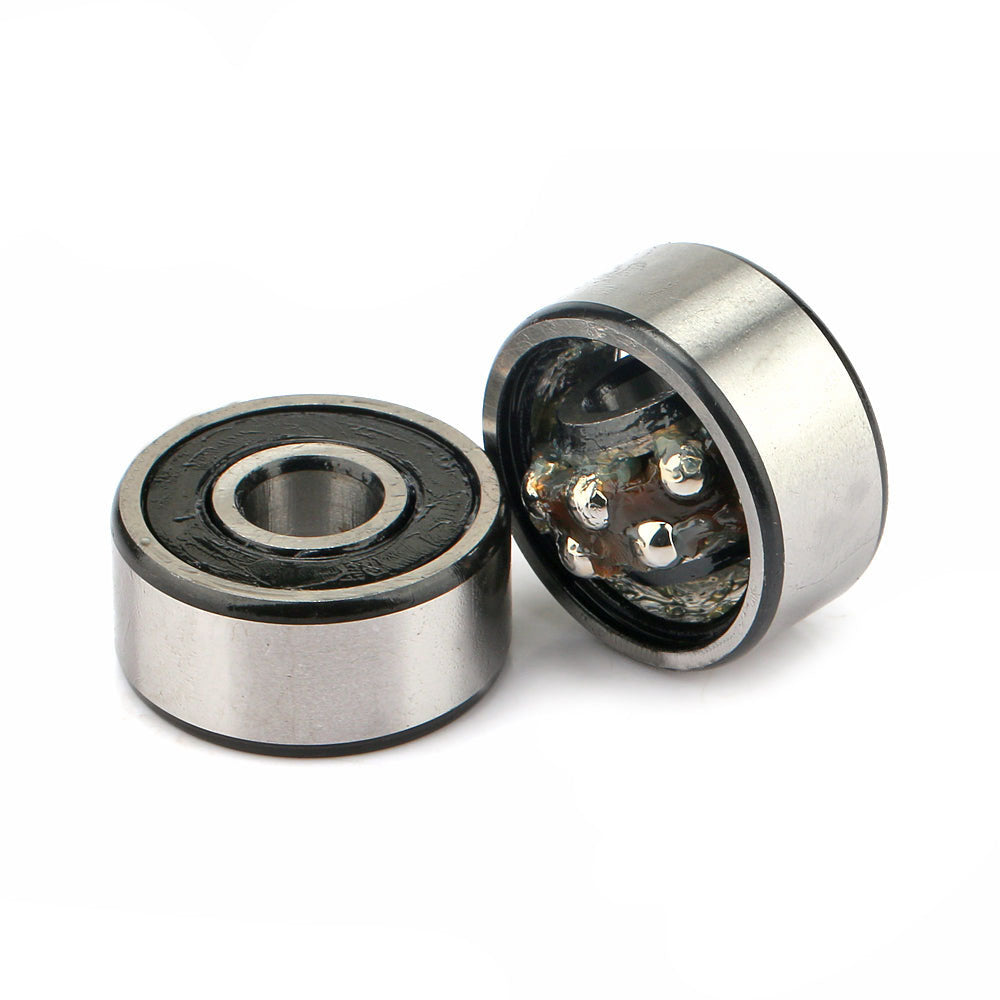

Image is for illustration purposes only.
What 2305-2RS means
| Code | Position | Meaning |
|---|---|---|
23 |
Series | Series 23: self-aligning ball bearing, wide (width series 2), diameter series 3 (medium). The type digit 1 is left out of these numbers |
05 |
Bore | Bore code 05 × 5 = 25 mm |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2305-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 62 mm | 2.4409 in | Supplier catalogue listing |
| Width (B) | 24 mm | 0.9449 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
2305-2RS is a self-aligning ball bearing, 25 mm bore × 62 mm OD × 24 mm wide (0.9843 × 2.4409 × 0.9449 in). It has rubber contact seals on both sides.
The 2305-2RS is a self-aligning ball bearing with a 25mm bore diameter from the 2300 series. It features contact rubber seals on both sides to protect against contaminants and retain lubrication. The double-row design and spherical outer raceway allow the bearing to compensate for shaft misalignment and deflection.
Model Number: 2305 2RS
Bore/Inner Diameter Inch: 0.9843
Bore/Inner Diameter mm: 25
Outside Diameter Inch: 2.4409
Outside Diameter mm: 62
Width Inch: 0.9449
