2307-2RS
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

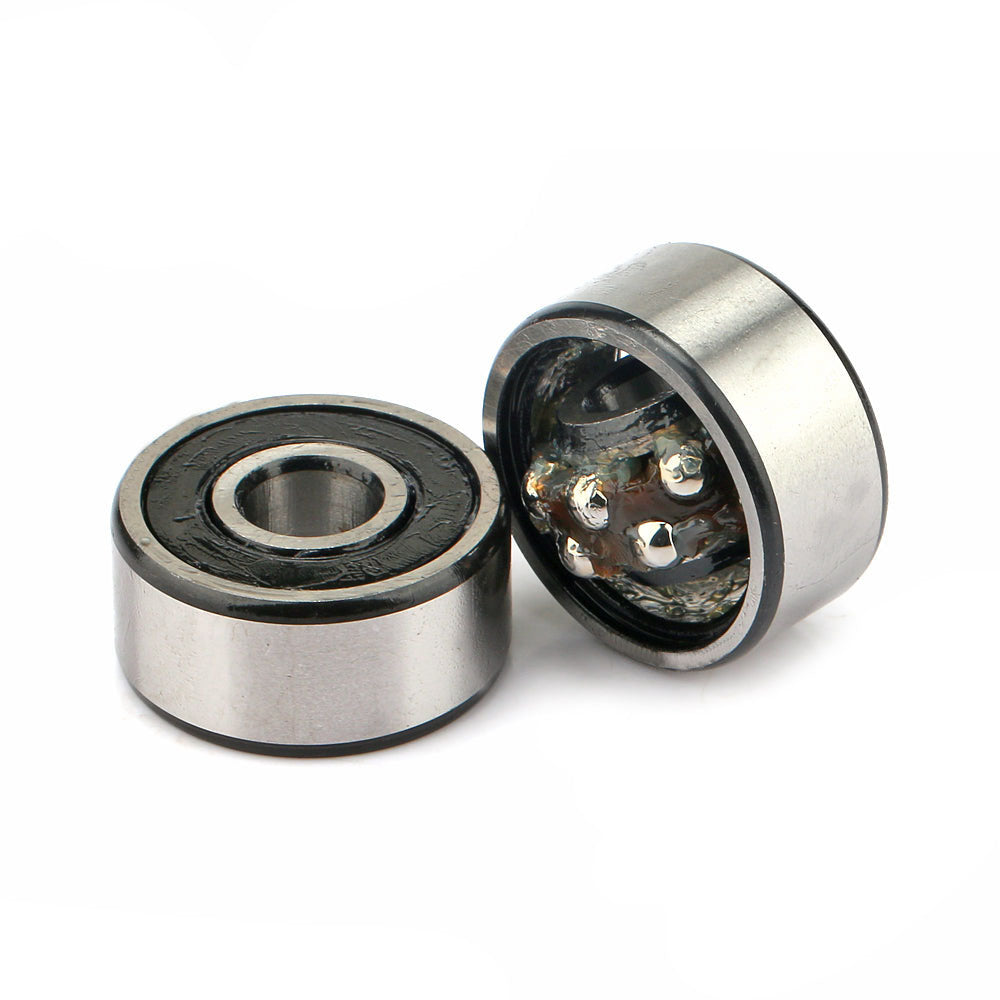

Image is for illustration purposes only.
What 2307-2RS means
| Code | Position | Meaning |
|---|---|---|
23 |
Series | Series 23: self-aligning ball bearing, wide (width series 2), diameter series 3 (medium). The type digit 1 is left out of these numbers |
07 |
Bore | Bore code 07 × 5 = 35 mm |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2307-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 80 mm | 3.1496 in | Supplier catalogue listing |
| Width (B) | 31 mm | 1.2205 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
2307-2RS is a self-aligning ball bearing, 35 mm bore × 80 mm OD × 31 mm wide (1.378 × 3.1496 × 1.2205 in). It has rubber contact seals on both sides.
The 2307-2RS is a self-aligning ball bearing with a 35mm bore diameter, featuring contact rubber seals on both sides for protection against contaminants. The double-row ball design allows the bearing to compensate for shaft misalignment and deflection during operation.
Model Number: 2307 2RS
Bore/Inner Diameter Inch: 1.378
Bore/Inner Diameter mm: 35
Outside Diameter Inch: 3.1496
Outside Diameter mm: 80
Width Inch: 1.2205
