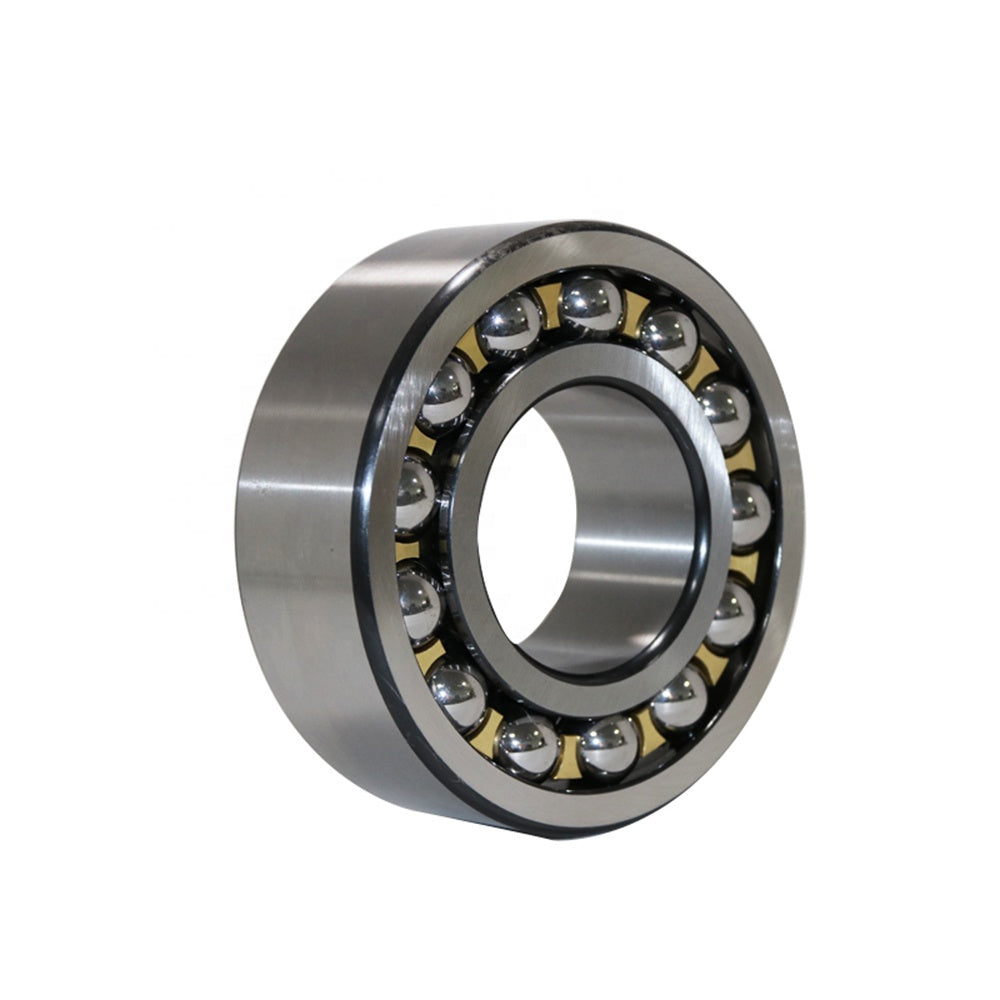

Image is for illustration purposes only.
Self-aligning ball bearings feature a double row of balls and a spherical outer ring raceway that allows the bearing to compensate for angular misalignment between the shaft and housing. The 2305 has a 25 mm bore diameter and belongs to the 23 series.
These bearings are commonly used in applications where shaft deflection or mounting errors may cause misalignment, such as agricultural equipment, conveyor systems, and wood processing machinery. They provide reliable operation under conditions where precise shaft and housing alignment cannot be maintained.
2305
Model Number: 2305
Bore/Inner Diameter Inch: 0.9843
Bore/Inner Diameter mm: 25
Outside Diameter Inch: 2.4409
Outside Diameter mm: 62
Width Inch: 0.9449
