2204-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$20.59 USD
Regular price
Sale price
$20.59 USD
Unit price
per
Couldn't load pickup availability
Bore20 mm
0.7874 in
Outside dia.47 mm
1.8504 in
Width18 mm
0.7087 in
TypeSelf-aligning ball bearing
SealingContact rubber seals, both sides
ClearanceNormal
Flat-rate shipping — calculated by weight at checkout

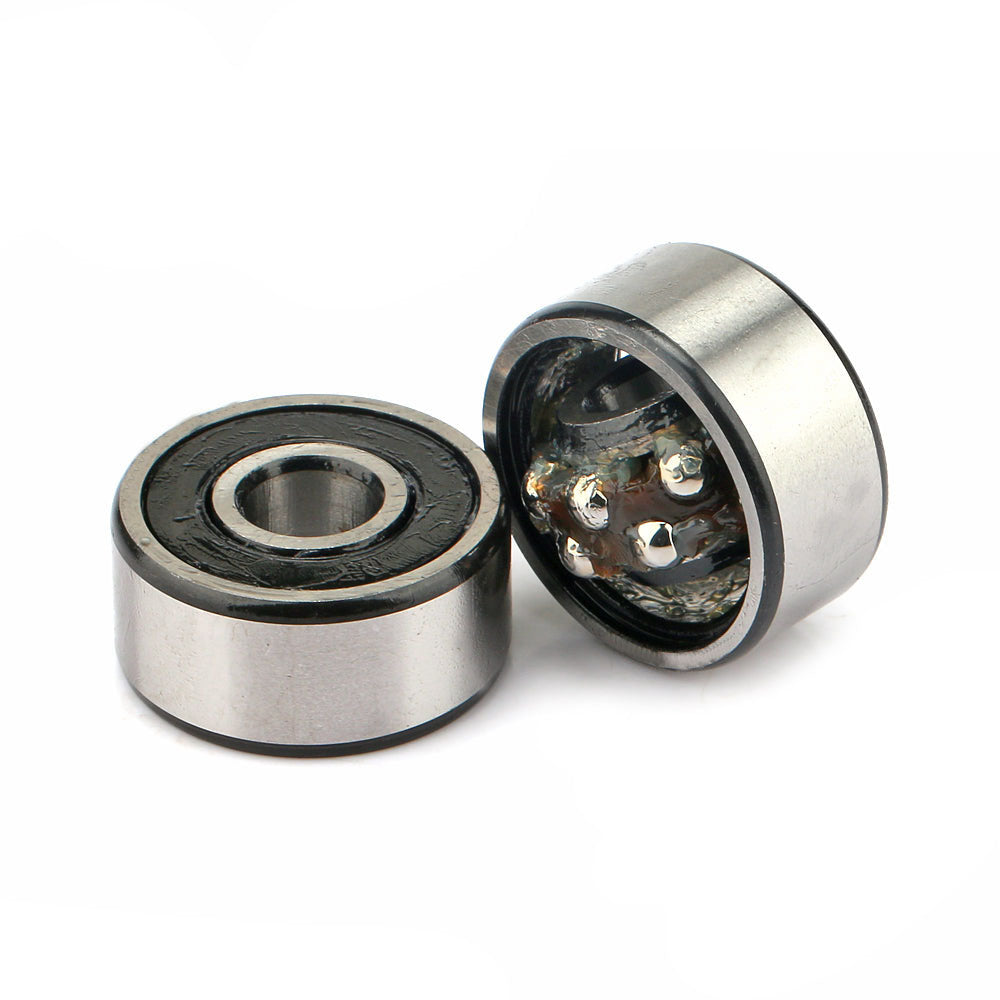

Image is for illustration purposes only.
What 2204-2RS means
| Code | Position | Meaning |
|---|---|---|
22 |
Series | Series 22: self-aligning ball bearing, wide (width series 2), diameter series 2 (light). The type digit 1 is left out of these numbers |
04 |
Bore | Bore code 04 × 5 = 20 mm |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2204-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 47 mm | 1.8504 in | Two independent catalogue sources agree |
| Width (B) | 18 mm | 0.7087 in | Two independent catalogue sources agree |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | 52100 bearing steel | Supplier catalogue listing | |
2204-2RS is a self-aligning ball bearing, 20 mm bore × 47 mm OD × 18 mm wide (0.7874 × 1.8504 × 0.7087 in). It has rubber contact seals on both sides.
The 2204-2RS is a self-aligning ball bearing with a 20 mm bore diameter and contact rubber seals on both sides. The double row design allows the bearing to compensate for shaft deflection and misalignment while providing reliable protection against contaminants.
Measurement Type
Metric
Inner Diameter (ID)
20 mm
Outside Diameter (OD)
47 mm
Width
18 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Ball Material
52100 Bearing Steel
Series
22
Bearing Type
Self-aligning ball bearing
Other Features
Double Row | Self Aligning Ball Bearing | Sealed
Component
Assembly
Weight (kg)
0.14
Basic Number
2204
UNSPSC
31171532
