2203-2RS
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$17.16 USD
Regular price
Sale price
$17.16 USD
Unit price
per
Couldn't load pickup availability
Bore17 mm
0.6693 in
Outside dia.40 mm
1.5748 in
Width16 mm
0.6299 in
TypeSelf-aligning ball bearing
SealingContact rubber seals, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

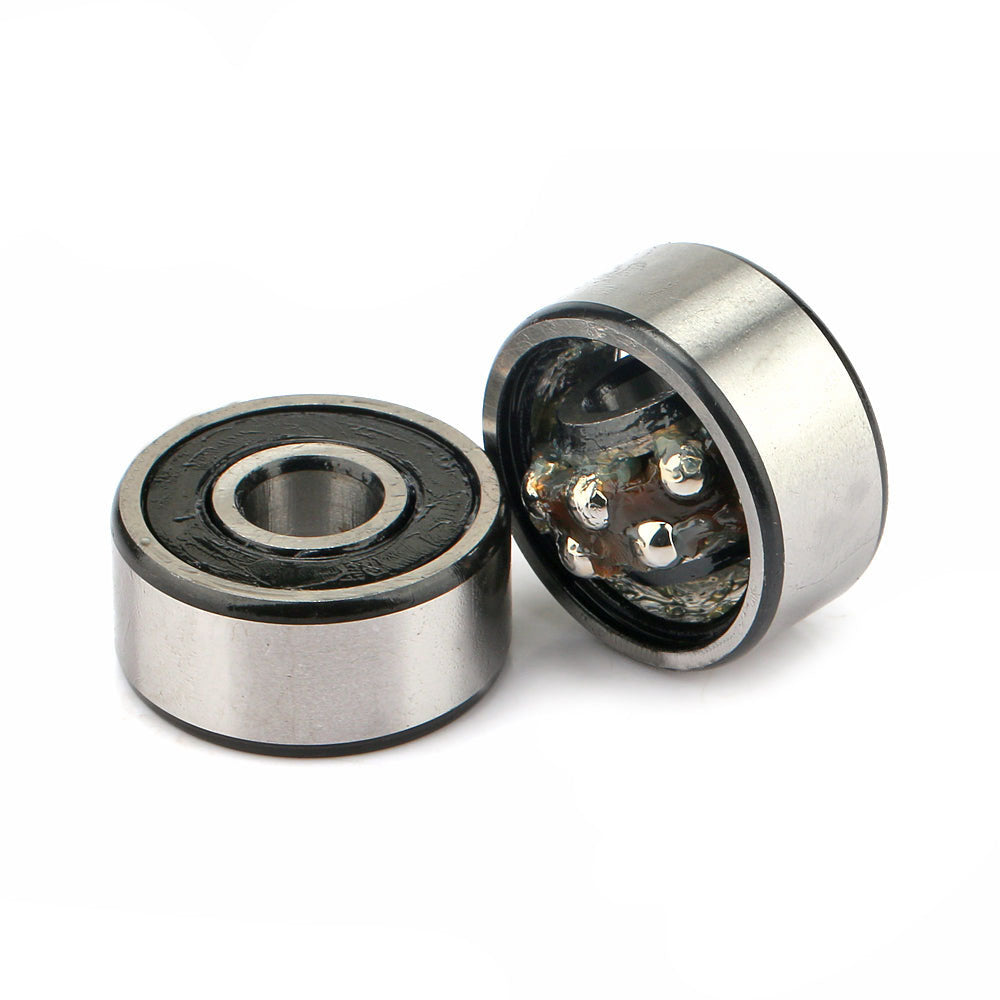

Image is for illustration purposes only.
What 2203-2RS means
| Code | Position | Meaning |
|---|---|---|
22 |
Series | Series 22: self-aligning ball bearing, wide (width series 2), diameter series 2 (light). The type digit 1 is left out of these numbers |
03 |
Bore | Bore code 03 = 17 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm) |
2RS |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
2203-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 17 mm | 0.6693 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 40 mm | 1.5748 in | Supplier catalogue listing |
| Width (B) | 16 mm | 0.6299 in | Supplier catalogue listing |
| Bearing type | Self-aligning ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Bore | Cylindrical (straight) bore | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | 52100 bearing steel | Supplier catalogue listing | |
2203-2RS is a self-aligning ball bearing, 17 mm bore × 40 mm OD × 16 mm wide (0.6693 × 1.5748 × 0.6299 in). It has rubber contact seals on both sides.
The 2203-2RS is a self-aligning ball bearing with a 17 mm bore diameter, featuring contact rubber seals on both sides for protection against contaminants. The double-row ball design allows the bearing to compensate for shaft deflection and misalignment between housing and shaft.
2203 2RS 2200 Series Self-Aligning Ball Bearing
Measurement Type
Metric
Inner Diameter (ID)
17 mm
Outside Diameter (OD)
40 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Ball Material
52100 Bearing Steel
Series
22
Bearing Type
Self-aligning ball bearing
Other Features
Double Row | Self Aligning Ball Bearing | Sealed
Component
Assembly
Weight (kg)
0.089
Basic Number
2203
UNSPSC
31171532
