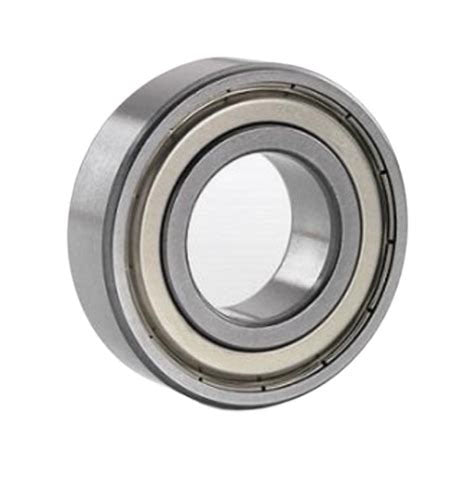

Image is for illustration purposes only.
1602-ZZ
The 1602-ZZ is a deep groove ball bearing from the 16 series with a 15mm bore diameter and metal shields on both sides. The ZZ suffix indicates double metal shield enclosure that protects the bearing from contaminants while retaining lubrication.
Deep groove ball bearings are versatile radial bearings suitable for applications requiring moderate radial and axial loads at various speeds. Common applications include electric motors, pumps, gearboxes, conveyor systems, and general industrial machinery.
1602 ZZ 1600 Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
15 mm / 1/4 in
Outside Diameter (OD)
0.6875 mm / 11/16 in
Width
0.25 mm / 1/4 in
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Series
16
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Metal Shields
Component
Assembly
Weight (kg)
0.006
Basic Number
1602
UNSPSC
31171504
