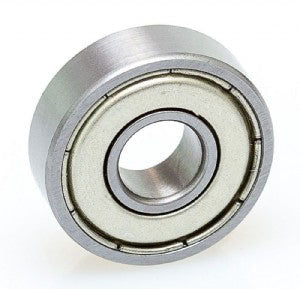

Image is for illustration purposes only.
1601-ZZ
The 1601-ZZ is a deep groove ball bearing from the 16 series with a 12mm bore diameter and metal shields on both sides. The metal shield enclosure (ZZ designation) provides protection from contaminants while allowing for pre-lubricated, maintenance-free operation in most applications.
Deep groove ball bearings are versatile radial bearings suitable for high-speed operation and applications requiring low noise and vibration levels. Common applications include electric motors, pumps, household appliances, power tools, and general industrial equipment where moderate radial and axial loads are present.
1601 ZZ 1600 Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
12 mm / 3/16 in
Outside Diameter (OD)
0.6875 mm / 11/16 in
Width
0.25 mm / 1/4 in
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Series
16
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Metal Shields
Component
Assembly
Weight (kg)
0.004
Basic Number
1601
UNSPSC
31171504
