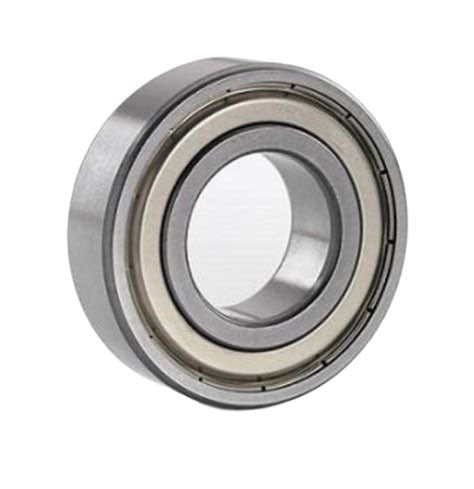

Image is for illustration purposes only.
1605-ZZ
The 1605-ZZ is a deep groove ball bearing from the 16 series with a 25mm bore diameter and metal shields on both sides. The ZZ designation indicates double metal shields that protect the bearing from contamination while retaining lubricant.
Deep groove ball bearings are versatile components suitable for applications with radial and axial loads in both directions. Common uses include electric motors, pumps, agricultural equipment, conveyors, and general industrial machinery where reliable performance and contamination protection are required.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
7.938 mm
Outside Diameter (OD)
23.019 mm
Width
7.938 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Series
16
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Metal Shields
Component
Assembly
Weight (kg)
0.017
Basic Number
1605
UNSPSC
31171504
