WC87501
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesCouldn't load pickup availability

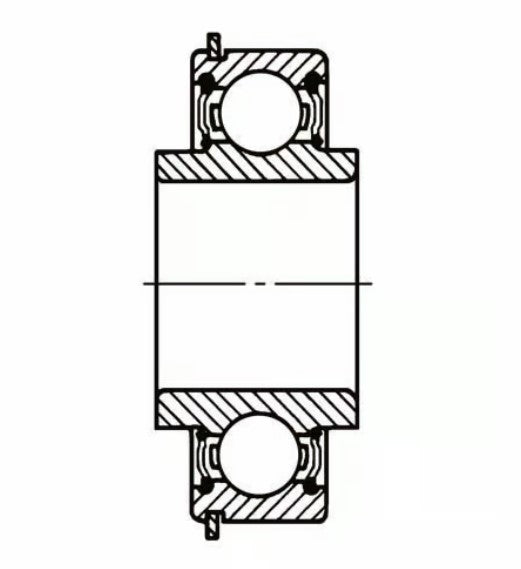

Image is for illustration purposes only.
WC87501 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 12 mm | 0.4724 in | Two independent catalogue sources agree |
| Outside diameter (D) | 32 mm | 1.2598 in | Two independent catalogue sources agree |
| Width (B) | 12.7 mm | 0.5 in | Two independent catalogue sources agree |
| Seals / shields | Single Sealed & Single Shielded | Supplier catalogue listing | |
WC87501 Sealed Wide Series Bearing
WC8000 WC87000 WC88000 Felt Series Ball Bearings for air tool and contaminated environments. Buna N Seals This series is made with contact to meet the exact dimensions of the side cup WC felt series. The wider outer race offers greater contact with the housing, helping to reduce creeping and distortion of the housing bore. The Buna N Seal makes possible the advantage of variable lip pressure, used in higher speed applications. Specially designed for use in soft metal housings such as aluminum and magnesium. The wide outer ring series, with Buna N Seals on both sides, excludes dirt effectively under even the dirtiest conditions. In addition, the wide outer ring makes this series operable in a softer metal housing. Dirt exclusion is well controlled by the contact by the contact pressure of the Buna N Seal.
ID mm: 12
ID Decimal: 0.4723
OD mm: 32
OD Decimal: 1.2598
Inner Ring Width: 0.4800
Outer Ring Width: 0.5000
Interchange: 201KTD
Specifications: See Data Sheet
Weight: 0.1
