TMSC0788NRCS40PX1

Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sources
$61.64 USD
$61.64 USD
Sale Sold out
Bore35 mm 1.378 in
Outside dia.80 mm 3.1496 in
Width24 mm 0.9449 in
TypeDeep Groove Ball Bearing
SealingOpen
Flat-rate shipping — calculated by weight at checkout
  • TM-SC0788NRCS40PX1 Ball Bearings
1 1

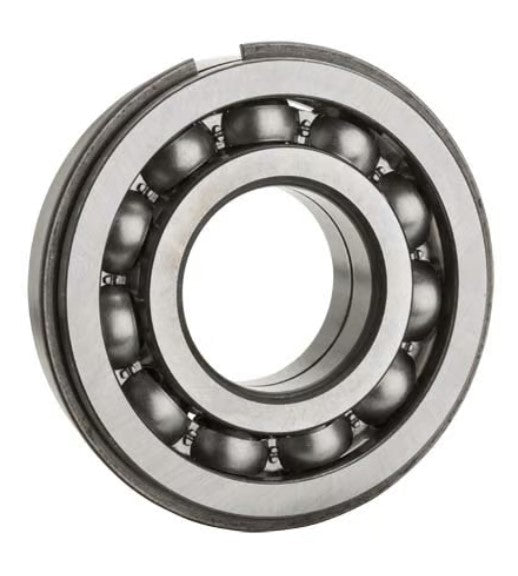

Image is for illustration purposes only.

TMSC0788NRCS40PX1 specifications

Specification Metric Inch Basis
Bore (d) 35 mm 1.378 in Two independent catalogue sources agree
Outside diameter (D) 80 mm 3.1496 in Two independent catalogue sources agree
Width (B) 24 mm 0.9449 in Two independent catalogue sources agree
Bearing type Deep Groove Ball Bearing Supplier catalogue listing
Seals / shields Open Supplier catalogue listing
Cage Steel Supplier catalogue listing
Material Steel Supplier catalogue listing
Reference ratings: NTN TMSC0788NRCS40PX1 catalogue values. Ratings differ slightly between makers; the brand we ship may vary.
Dynamic load rating, C30.51 kN6,859 lbf
Static load rating, C021.22 kN4,770 lbf
Limiting speed, grease8,800 rpm
Limiting speed, oil10,000 rpm

TMSC0788NRCS40PX1 is a deep Groove Ball Bearing, 35 mm bore × 80 mm OD × 24 mm wide (1.378 × 3.1496 × 0.9449 in). NTN catalogue values for TMSC0788NRCS40PX1: dynamic load rating C = 30.51 kN, static C0 = 21.22 kN, limiting speed 8,800 rpm on grease, 10,000 rpm on oil.
