SS6308-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Image is for illustration purposes only.
What SS6308-ZZ means
| Code | Position | Meaning |
|---|---|---|
SS |
Material | Stainless steel rings and balls |
6 |
Type | Deep groove ball bearing |
3 |
Diameter series | Diameter series 3 (medium): fixes OD and width for the bore (ISO 15) |
08 |
Bore | Bore code 08 × 5 = 40 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
SS6308-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 40 mm | 1.5748 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 90 mm | 3.5433 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 23 mm | 0.9055 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Stainless steel rings and balls | Stated by the designation | |
SS6308-ZZ is a deep groove ball bearing, 40 mm bore × 90 mm OD × 23 mm wide (1.5748 × 3.5433 × 0.9055 in). It has metal shields on both sides and stainless steel rings and balls.
The SS6308-ZZ is a stainless steel deep groove ball bearing with double metal shields (ZZ) that provide protection against contaminants while retaining lubrication. This metric series bearing features a 40mm bore diameter, 90mm outside diameter, and 23mm width, constructed from corrosion-resistant stainless steel for demanding environments.

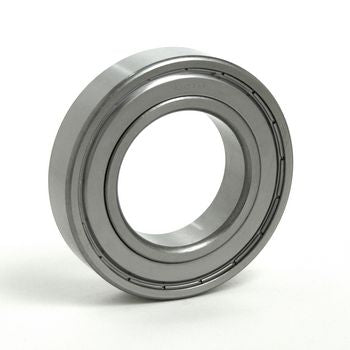

SS6308 ZZ Metric Series Stainless Steel Ball Bearing
