SS6307-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

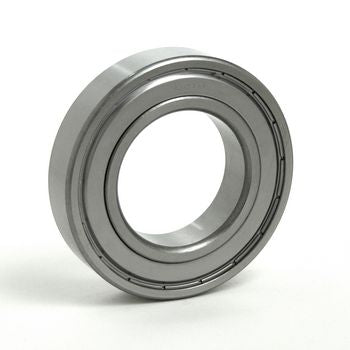

Image is for illustration purposes only.
What SS6307-ZZ means
| Code | Position | Meaning |
|---|---|---|
SS |
Material | Stainless steel rings and balls |
6 |
Type | Deep groove ball bearing |
3 |
Diameter series | Diameter series 3 (medium): fixes OD and width for the bore (ISO 15) |
07 |
Bore | Bore code 07 × 5 = 35 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
SS6307-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 21 mm | 0.8268 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Stainless steel rings and balls | Stated by the designation | |
SS6307-ZZ is a deep groove ball bearing, 35 mm bore × 80 mm OD × 21 mm wide (1.378 × 3.1496 × 0.8268 in). It has metal shields on both sides and stainless steel rings and balls.
The SS6307-ZZ is a single row deep groove ball bearing manufactured from stainless steel with double metal shields for protection against contamination. This metric bearing features a 35mm bore diameter, 80mm outside diameter, and 21mm width, suitable for applications requiring corrosion resistance.
SS6307 ZZ Metric Series Stainless Steel Ball Bearing
