SS6008-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Image is for illustration purposes only.
What SS6008-ZZ means
| Code | Position | Meaning |
|---|---|---|
SS |
Material | Stainless steel rings and balls |
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
08 |
Bore | Bore code 08 × 5 = 40 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
SS6008-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 40 mm | 1.5748 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 68 mm | 2.6772 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 15 mm | 0.5906 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Stainless steel rings and balls | Stated by the designation | |
SS6008-ZZ is a deep groove ball bearing, 40 mm bore × 68 mm OD × 15 mm wide (1.5748 × 2.6772 × 0.5906 in). It has metal shields on both sides and stainless steel rings and balls.

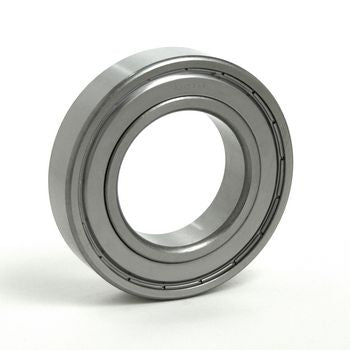

The SS6008-ZZ is a stainless steel deep groove ball bearing with double metal shields. This metric series bearing features a 40mm bore diameter and is designed for applications requiring corrosion resistance and protection from contaminants.
Series: SS
Model Number: SS6008 ZZ
Bore/Inner Diameter Inch: 1.5748
Bore/Inner Diameter mm: 40
Outside Diameter Inch: 2.6772
Outside Diameter mm: 68
